Adjusting Roll Spacing

IMPORTANT: Roll stops control clearance between upper and lower rolls. Rolls should never be adjusted to allow contact during operation or serious damage to machine may occur.

Dirt buldup on rolls can cause roll contact and damge the machine. Remove dirt buildup regularly or increase roll gap so dirt buildup will not cause the conditoner rolls to hit.

1. Put tongue in operating position and lower machine to the ground.

2. Open right-hand shield. Pull pin (A) and lift idler (B) to release reel drive belt tension.

3. Engage PTO drive with tractor throttle at slowest engine speed.

EX,820J,S -19-18MAR95-1/3

CAUTION: To avoid bodily injury while performing this adjustment:

1. Keep all shields in place.
2. Keep hands and clothing away from moving parts.
3. Carefully follow procedure below.

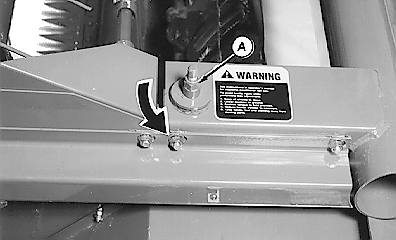

4. Stand away from machine. Turn adjusting nut (A) counterclockwise in quarter increments.

5. Proceed until roll contact causes vibration and a rumbling noise.

EX,820J,S -19-18MAR95-2/3

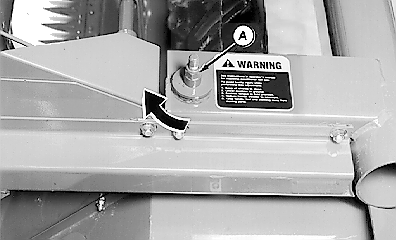

6. Turn adjusting nut (A) clockwise in quarter increments until noise stops.

7. Turn an additional 1 to 1-1/2 turns for minimum roll clearance.

8. Repeat procedure on opposite side.

9. Visually check for contact between rolls. If necessary, adjust rolls further apart to prevent roll contact. This adjustment can be done with tractor engine off.

10. Disengage PTO drive and stop tractor engine.

11. Tension reel drive belt and install shield.

EX,820J,S -19-18MAR95-3/3
