Knife Drive Gear Case Oil

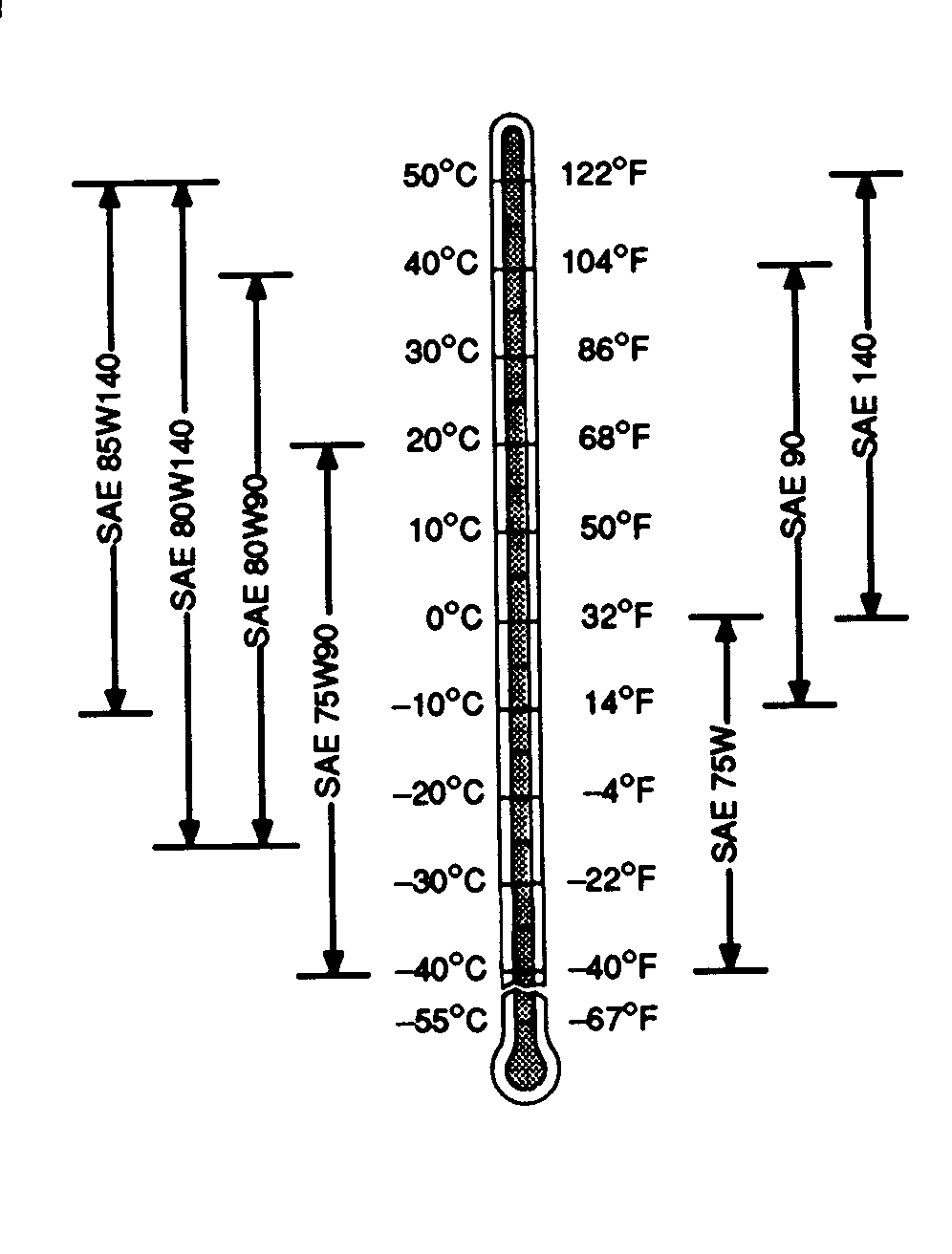

Use oil viscosity based on the expected air temperature range during the period between oil changes.

The following oils are preferred:

  • John Deere EXTREME-GARD ™
  • John Deere GL-5 GEAR LUBRICANT

Other oils may be used if they meet API Service Classification GL-5

Oils meeting Military Specification MIL-L-10324A may be used as arctic oils.

TS1416

EXTREME-GARD is a trademark of Deere & Company.

EX,820N,Q -19-20JUL94-1/1
