Adjusting Reel Drive Belt

1. Rotate reel sheave (A) counterclockwise to allow idler (B) to take up belt slack.

2. Loosen adjusting bolt (C).

E37172

EX,820P,IA1 -19-06JUL95-1/2

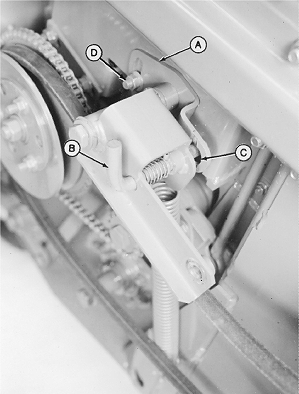

NOTE: Idler removed for illustration purposes only.

3. Adjust bracket (A) until release pin (B) is in the center of release pin slot (C).

4. Tighten adjusting bolt (D).


A-Bracket
B-Release Pin
C-Slot
D-Adjusting Bolt

E37173

EX,820P,IA1 -19-06JUL95-2/2
