Adjusting Cam Followers

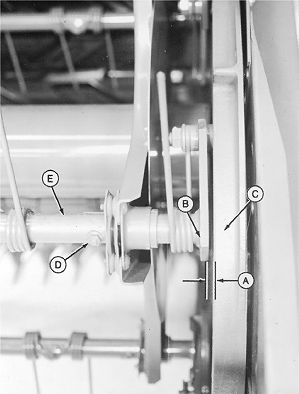

A minimum of 3 mm (1/8-in.) clearance (A) is necessary between cam follower arm (B) and cam (C)

To adjust:

1. Loosen nut (D).

2. Move tooth pipe (E) until a 3 mm (1/8-in.) (A) clearance is obtained.

3. Tighten nut (D).

A-3 mm (1/8-in. Clearance)
B-Cam Follower Arm
C-Cam
D-Nut
E-Tooth Pipe
