OME95634: 820 Mower Conditioner(989601- ), Block File: EX_820P_R_19

IMPORTANT: The slip clutch has been designed to furnish protection to the drive train; overtightening will lessen this protection.

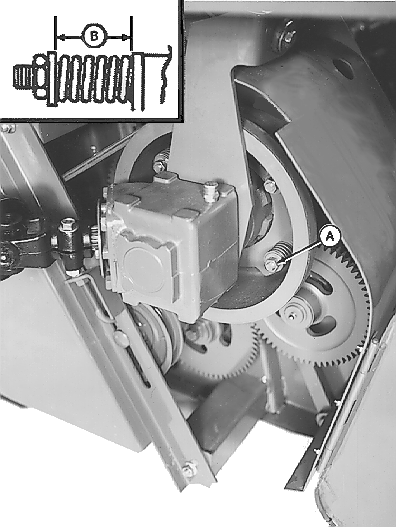

Adjust slip clutch by turning spring adjusting nuts (A). Set slip clutch dimension (B) to 40 mm (1-9/16 in.) from inside washer to clutch plate.

EX,820P,R -19-16DEC94-1/1
