OME95634: 820 Mower Conditioner(989601- ), Block File: EX_820P_S_19

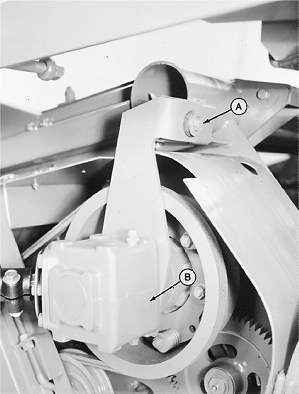

1. Open shield.

2. Remove cap screw (A), washer, and nut.

3. Remove gear case (B) and driveline assembly.

EX,820P,S -19-10MAY93-1/5

4. Remove six nuts, washers, and springs (A).

5. Remove clutch plate (B).

EX,820P,S -19-10MAY93-2/5

6. Remove hub (A).

7. Remove eight cap screws and lining (B).

8. Install new lining and fasten with eight cap screws.

9. Install hub (A).

EX,820P,S -19-10MAY93-3/5

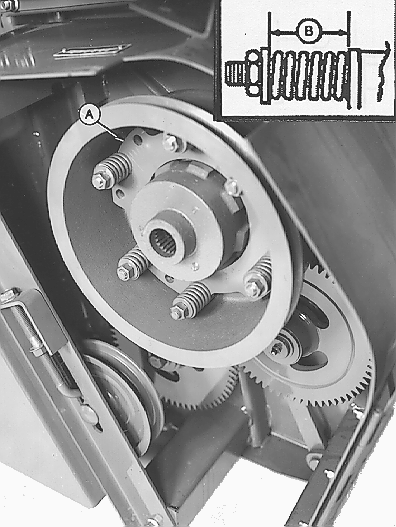

10. Install clutch plate (A). Fasten with six springs, washers, and nuts.

IMPORTANT: The slip clutch has been designed to furnish protection to the drive train; overtightening will lessen this protection.

11. Adjust slip clutch by turning adjusting nuts. Set slip clutch dimension (B) to 40 mm (1-9/16 in.) from inside of washer to clutch plate.

EX,820P,S -19-10MAY93-4/5

12. Install gear case (B) and driveline assembly.

13. Install cap screw (A), washer, and nut.

14. Close shield.

EX,820P,S -19-10MAY93-5/5
