Connecting Warning Light Wiring Harness To Tractor

NOTE: Field installation of 7-Terminal Auxiliary Electric Kit (RE17282) is required if towing tractor is not equipped with an electrical outlet.

Make sure mower-conditioner warning lights operate with tractor warning lights and turn signals.

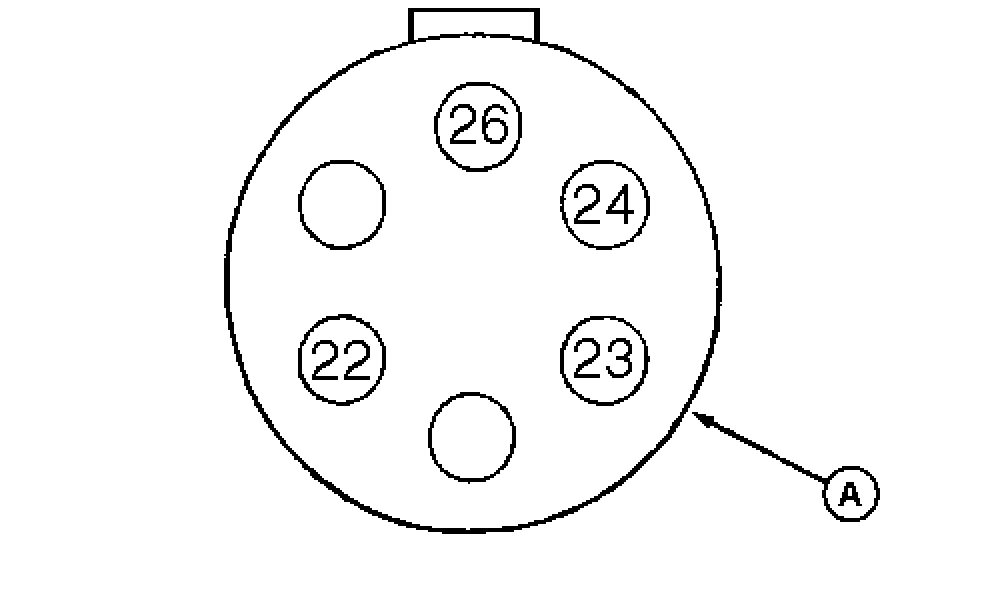

Connect warning light harness plug (A) to seven-terminal outlet on tractor.

Terminal Function Wire Color
22 Left-Hand Warning Light Yellow
23 Right-Hand Warning Lights Green
24 Tail Lights Brown
26 Ground Black


RW55134

Tractor 7-Terminal Outlet

E45609

Mower-Conditioner Warning Light Plug

EX,915IW,E -19-25JUL97-1/1
