Operating Tips for Making Right-Hand Turn

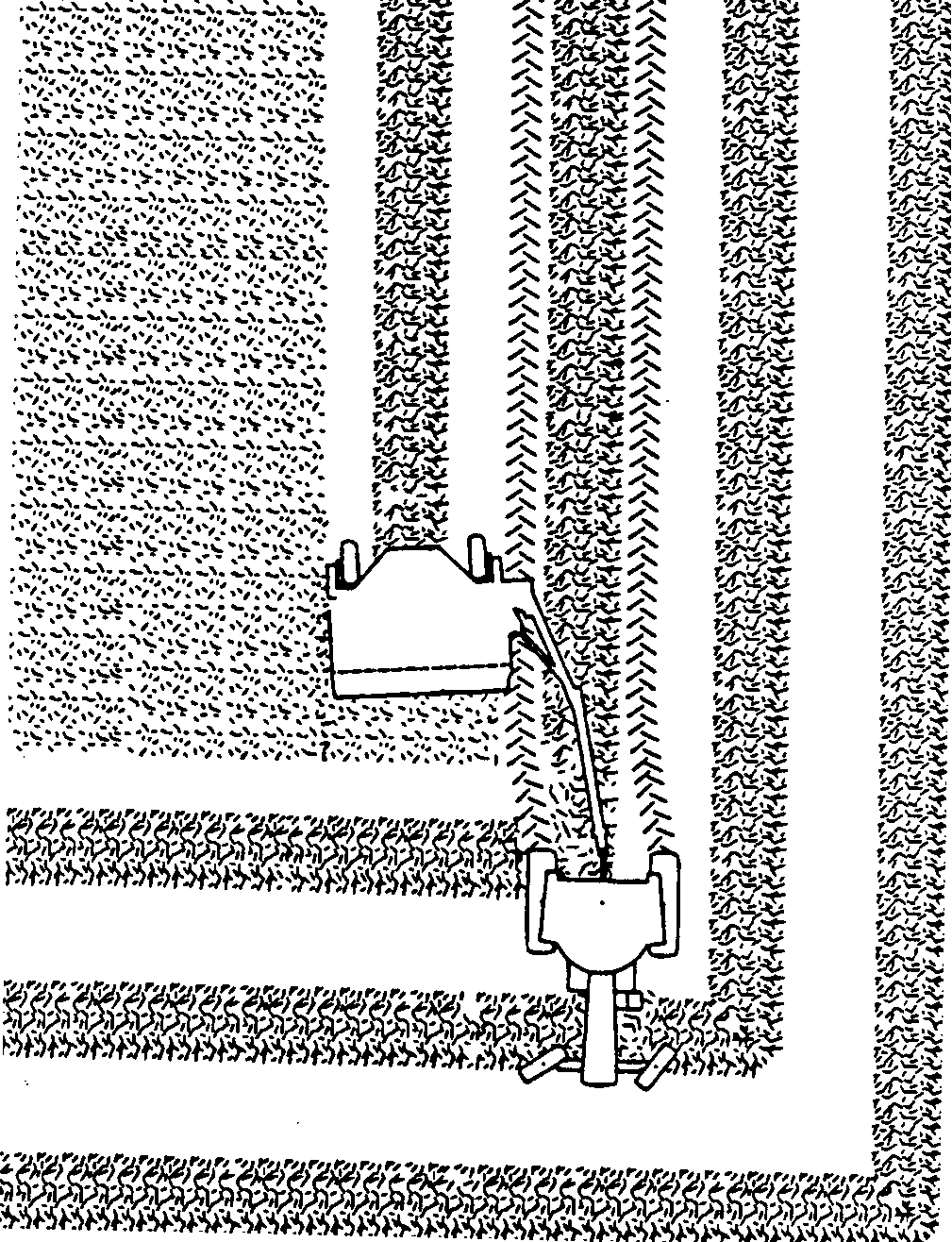

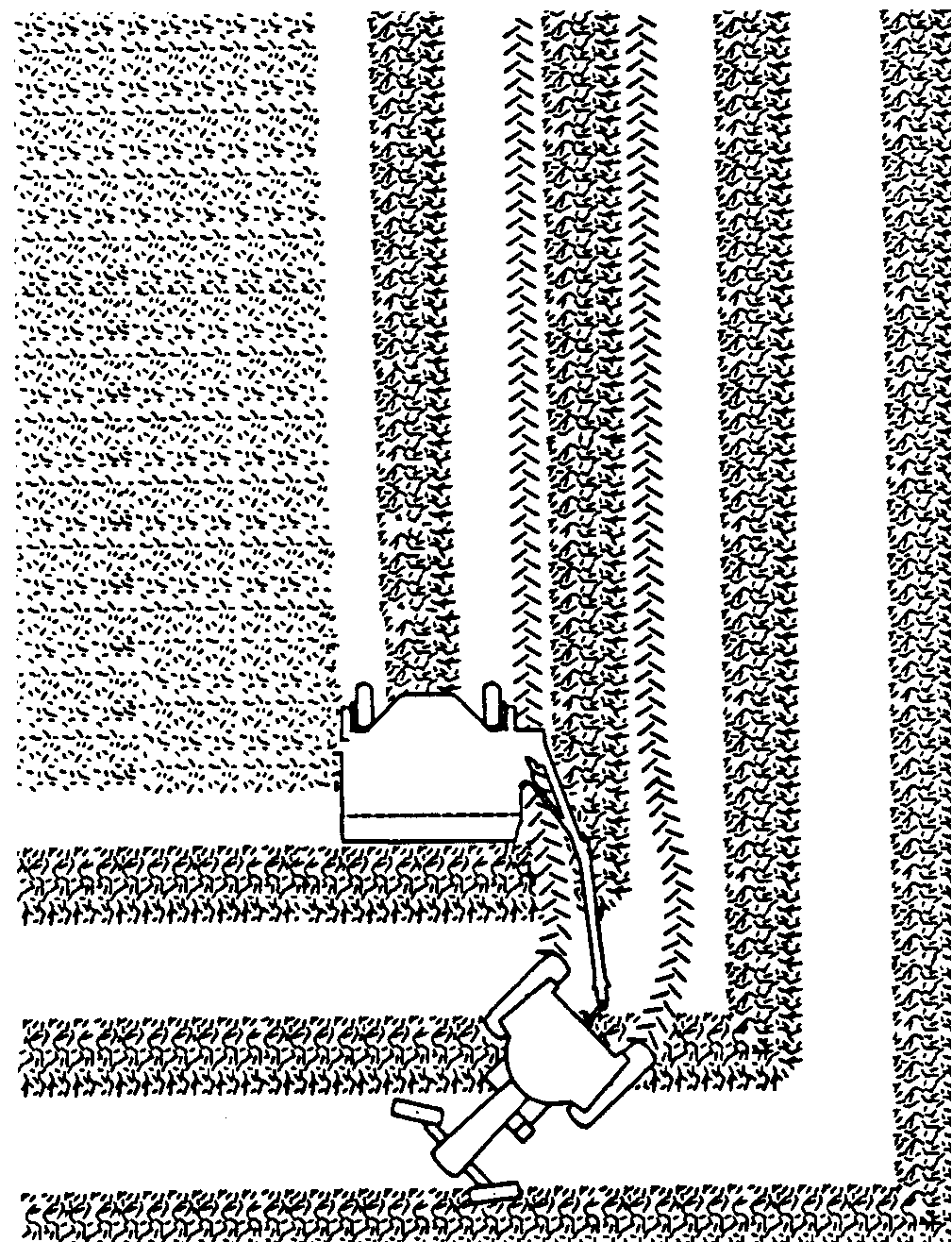

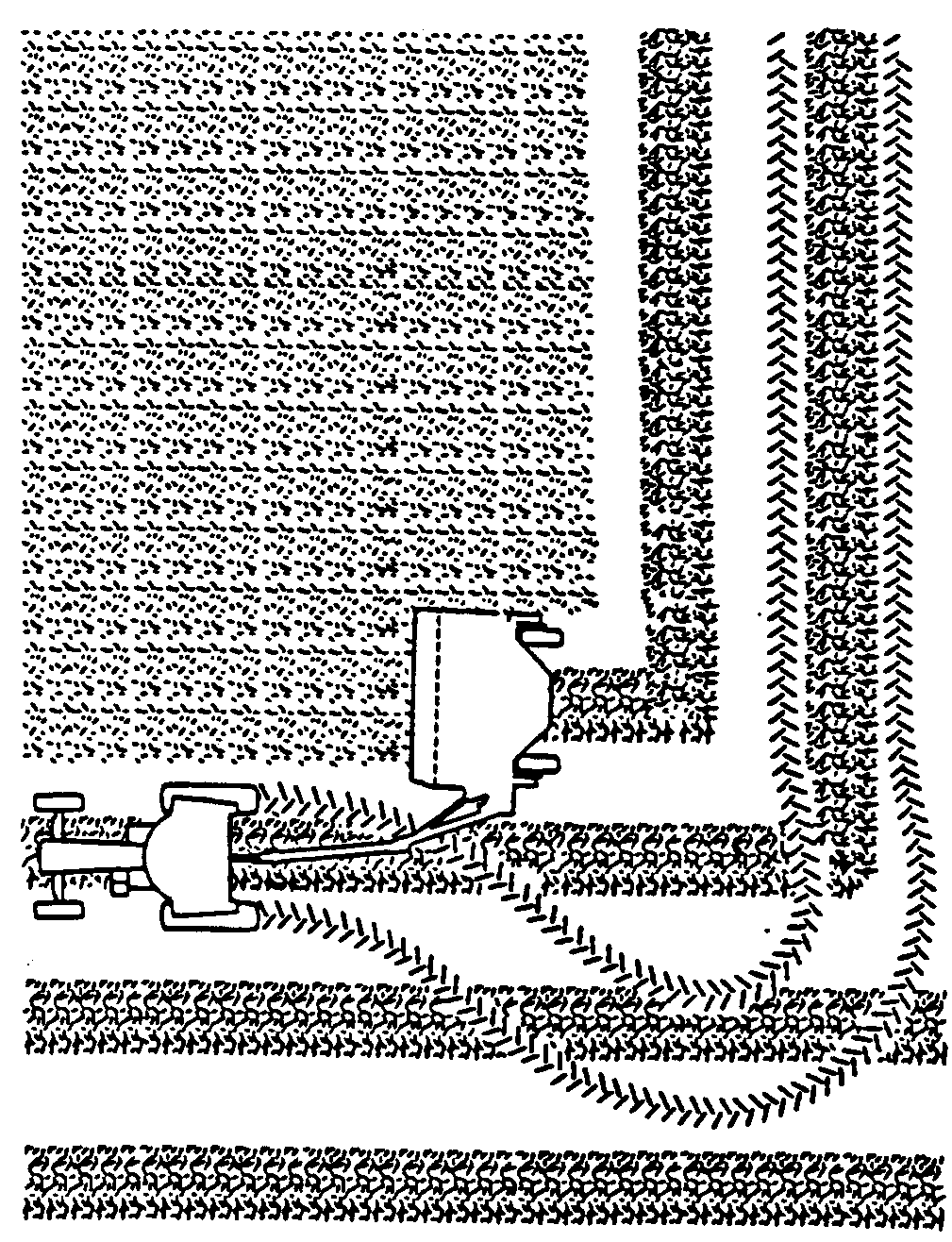

NOTE: Refer to illustrations for making right-hand turn.

A short left-hand turn followed by a sharp right-hand turn will produce the best results.

Exact timing varies with tractor wheelbase, ground speed, and distance from drawbar pin to rear tires.
