Operating Tips for Making 180 Degree Turn

NOTE: Refer to illustrations for making 180 degree turn.

Cutting in lands requires a minimum of four passes around the field. Cutting six passes around the field makes cutting in lands easier.

When cutting the field into lands, the first two passes should be right-hand turns. A short left-hand turn followed by a sharp right-hand turn will produce the best results.

After the third pass, start left-hand turns to continue cutting between lands.

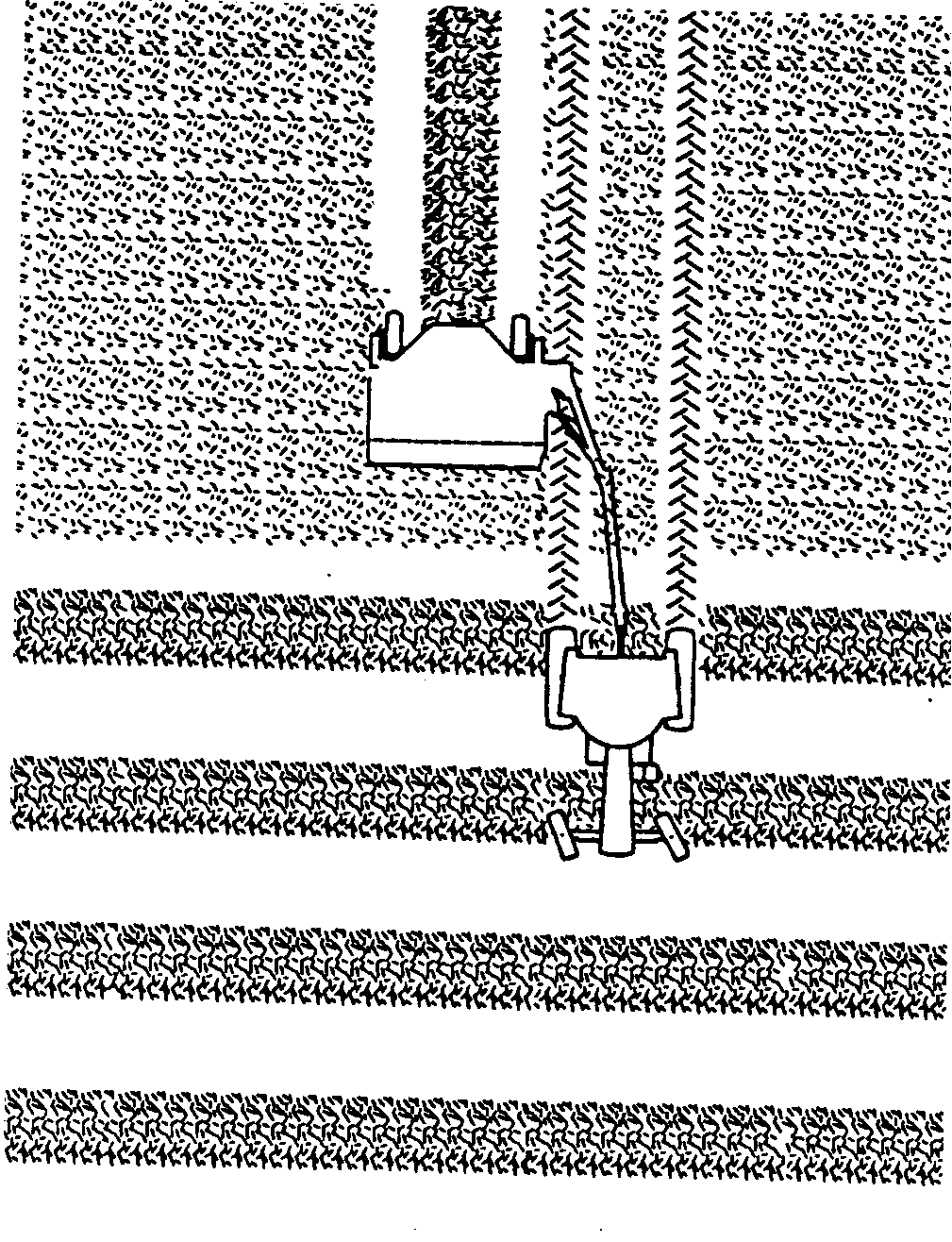

E38297

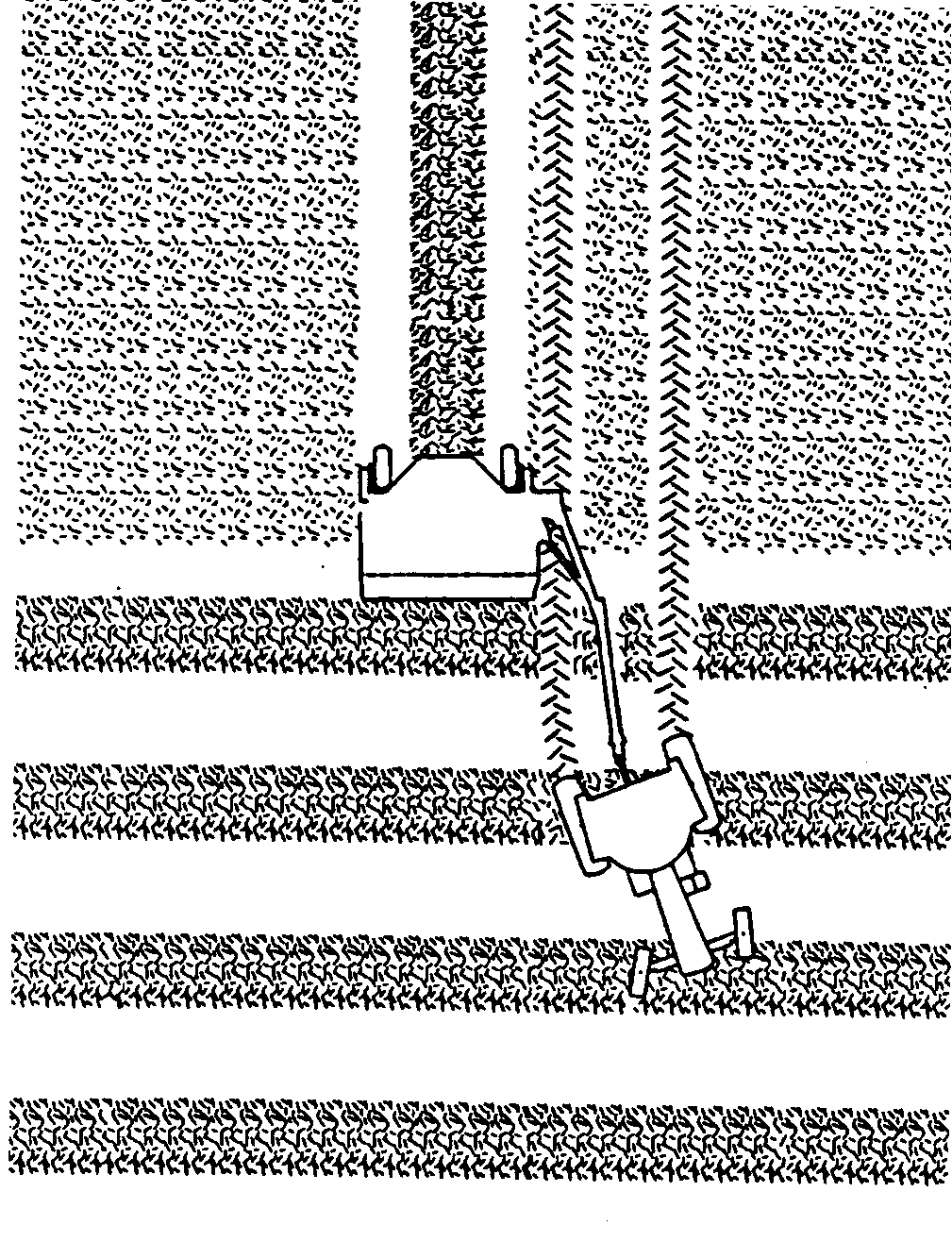

E38298

EX,930J,N -19-21DEC94-1/2

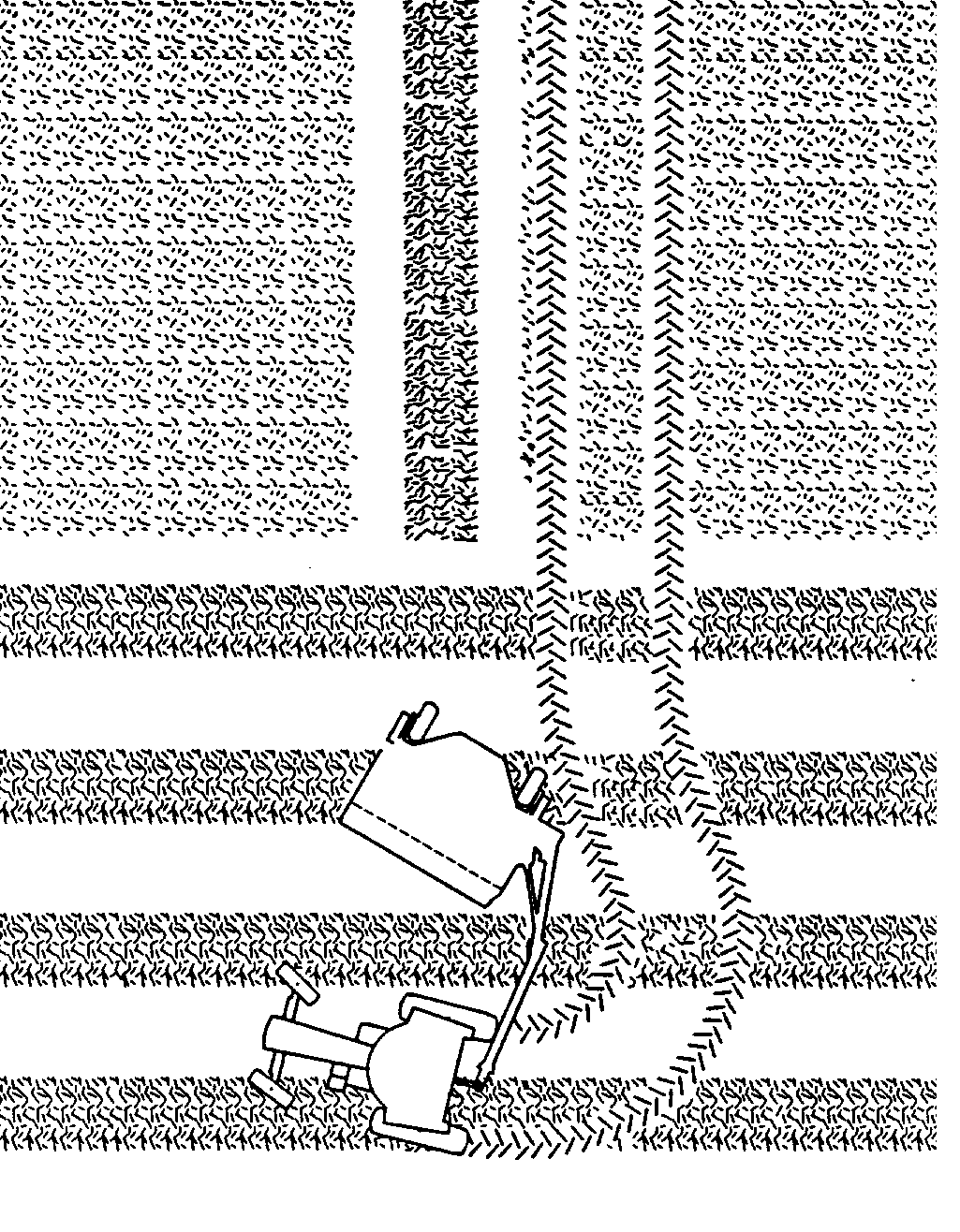

E38299

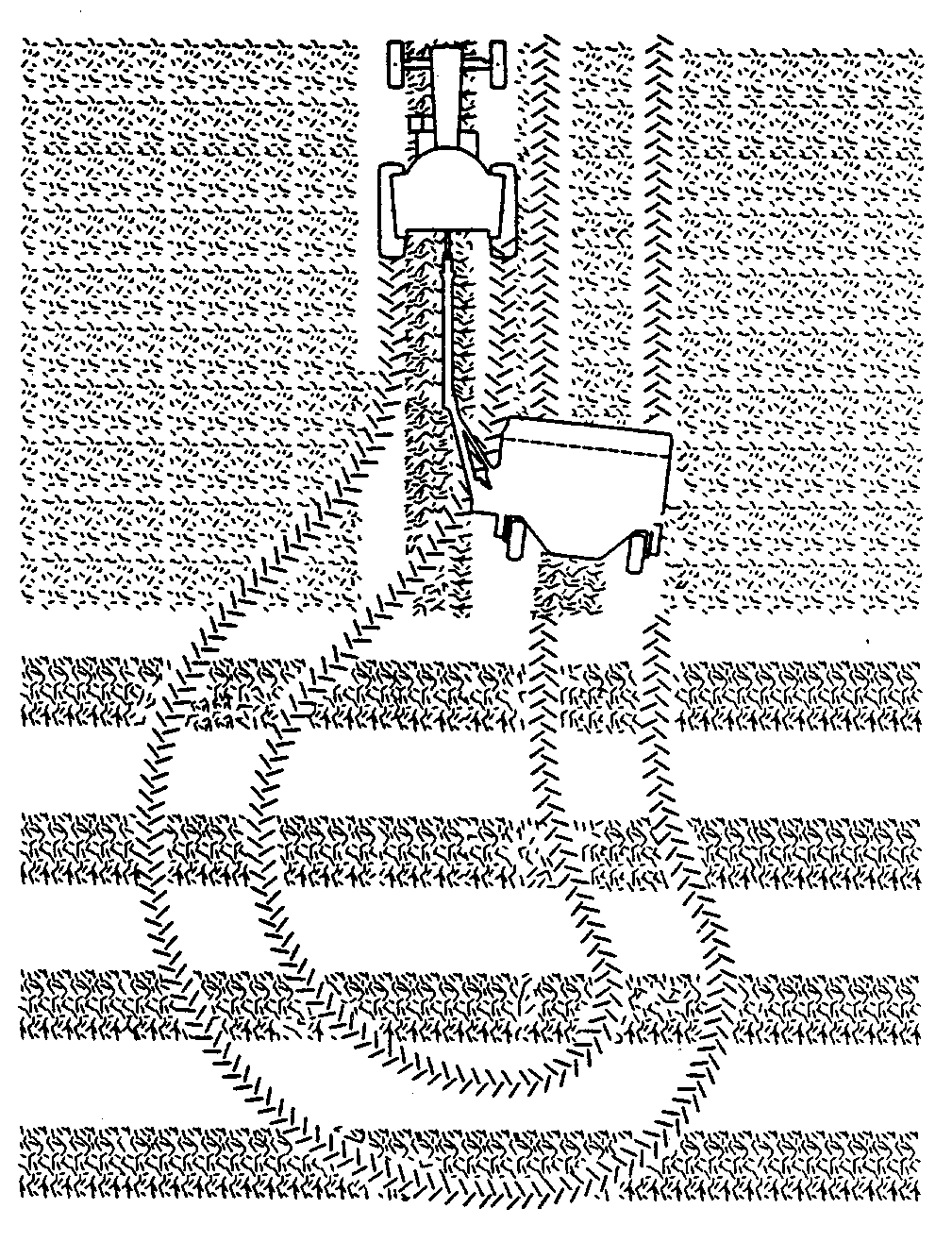

E38300

EX,930J,N -19-21DEC94-2/2
