Cutterbar and Gear Case Oil

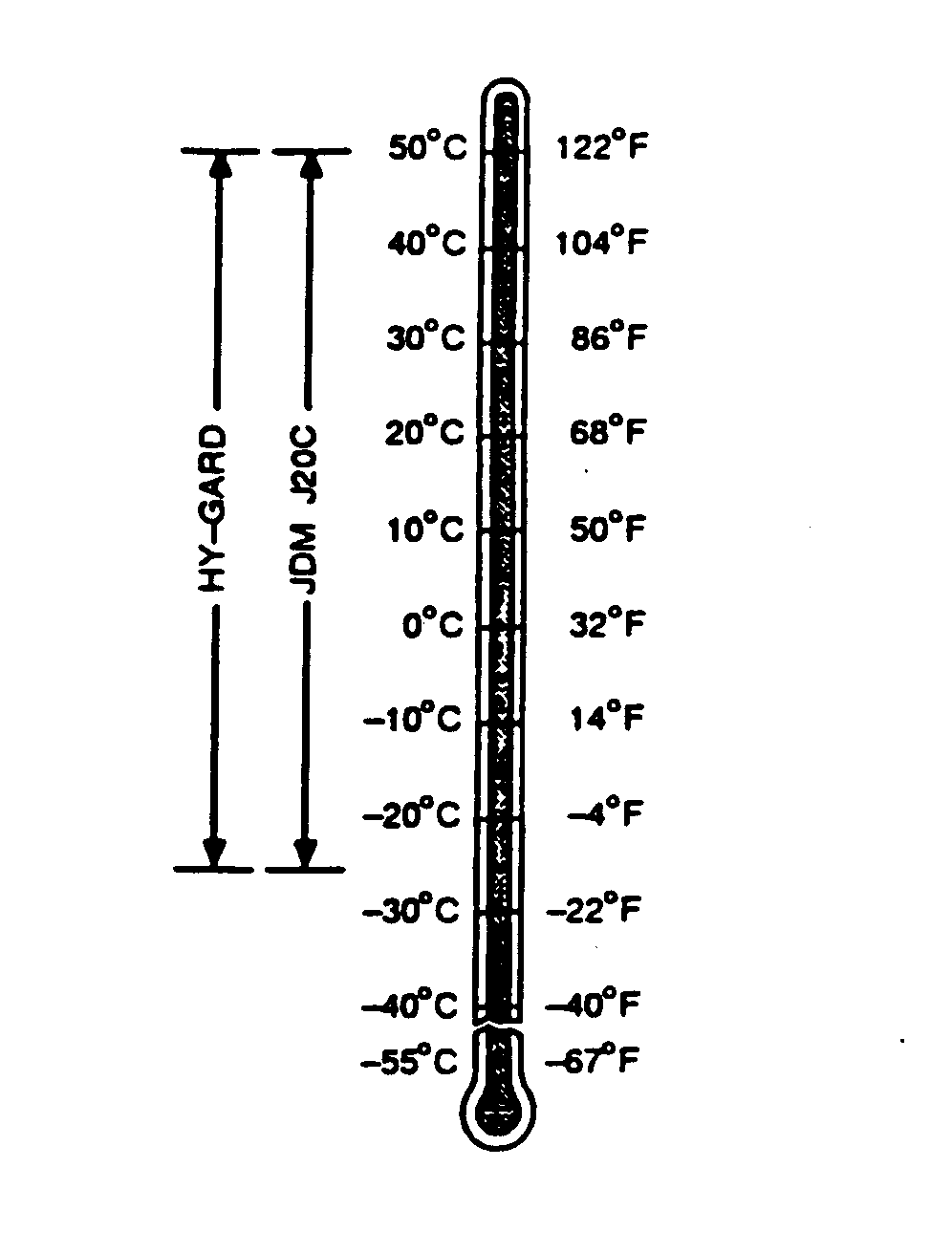

Use oil viscosity based on the expected air temperature range during the period between oil changes.

John Deere HY-GARD ® oil is preferred

Other oils may be used if they meet John Deere Standard JDM J20C.

E37277

HY-GARD is a trademark of Deere and Company.

EX,925RN,Q -19-04AUG97-1/1
