Every 10 Hours

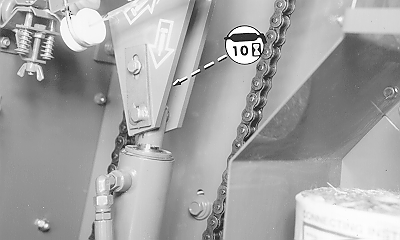

Chains
 CAUTION:
To help prevent injury, do not lubricate chains with machine running.
Liberally apply SAE 30 or heavier oil to chains every 10 hours of operation.
Lubricate chains immediately after operation when the chains are still warm. Let the machine stand idle for a short period to ensure effective oil penetration, resulting in longer chain life.
|
|
|
|
AG,OUMX005,1095 -19-09JAN00-1/7
|
|
|

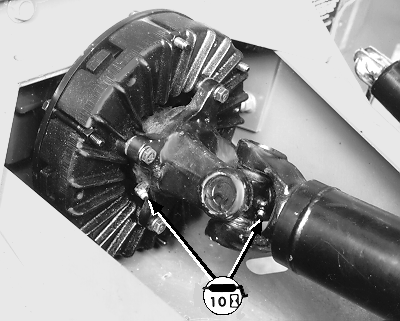

AG,OUMX005,1095 -19-09JAN00-2/7
|
|
|

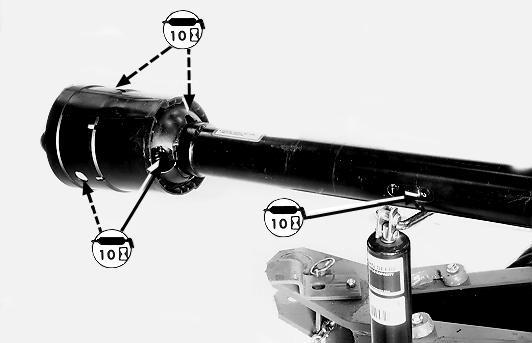

AG,OUMX005,1095 -19-09JAN00-3/7
|
|
|

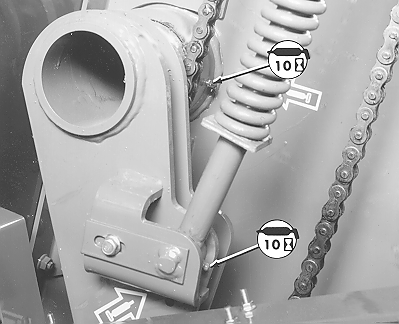

AG,OUMX005,1095 -19-09JAN00-4/7
|

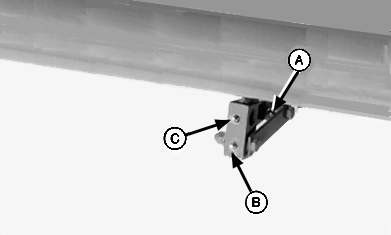

Pickup Feeder Finger Links (Wide Pickup)
If link is installed in lower hole, lubricate fittings (A) and (B) only.
If link is installed in top hole, lubricate fittings (A) and (C) only.
Lubricate both feeder finger links.
A-Lubrication Fitting
B-Lubrication Fitting
C-Lubrication Fitting
|
|
|
|
AG,OUMX005,1095 -19-09JAN00-5/7
|

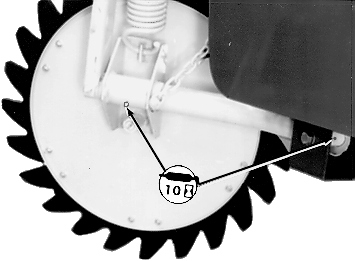

Gathering Wheels and Support Pivot (If Equipped)
|
|
|
|
AG,OUMX005,1095 -19-09JAN00-6/7
|

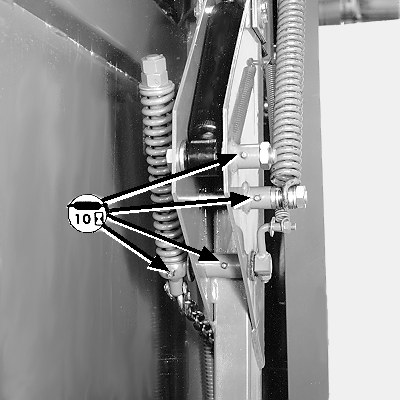

Push Bar Shock Absorber and Spring Bolt (If Equipped)
|
|
|
|
AG,OUMX005,1095 -19-09JAN00-7/7
|
|
