Installing BALETRAK PLUS® Monitor-Controller In SOUND-GARD® Cab

1. Assemble monitor-controller bracket (B) to base.

2. Attach base to window ledge. Fasten with three 5/16 x 1-3/4 in. cap screws (A).


A-Cap Screws, 5/16 x 1-3/4 in.
B-Bracket

E21705

BALETRAK PLUS is a registered trademark of Deere & Company
SOUND-GARD is a registered trademark of Deere & Company

AG,OUO6017,1579 -19-26OCT99-1/3

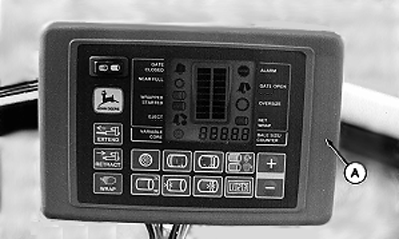

3. Put monitor-controller (A) pivot bracket on top of mounting bracket. Fasten with M6 x 16 mm cap screw.

4. Route harness along right-hand side of cab, away from operating levers, and toward the rear of cab.


A-Monitor-Controller

E39643

AG,OUO6017,1579 -19-26OCT99-2/3

5. Connect harness power plug to convenience outlet (A).

6. Route harness through grommet in back of cab, or drill a 44 mm (1-3/4 in.) diameter hole in rear wall if required.


A-Convenience Outlet

E21708

AG,OUO6017,1579 -19-26OCT99-3/3
