Wheel Spindle Positions 31 x 13.5-15 Tires-Wide Pickup (466/466S)

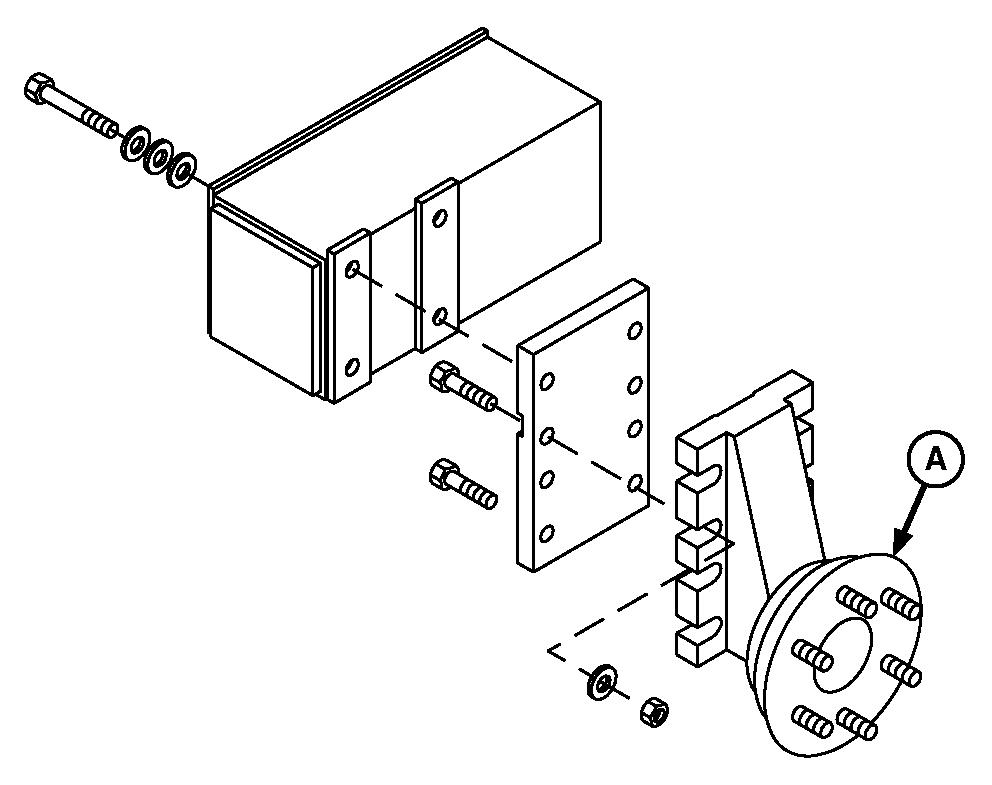

Normal position (A) is recommended for most baling conditions.

• Recommended for push bar.
• Pickup teeth may touch the ground with pickup completely lowered depending on tractor drawbar height.

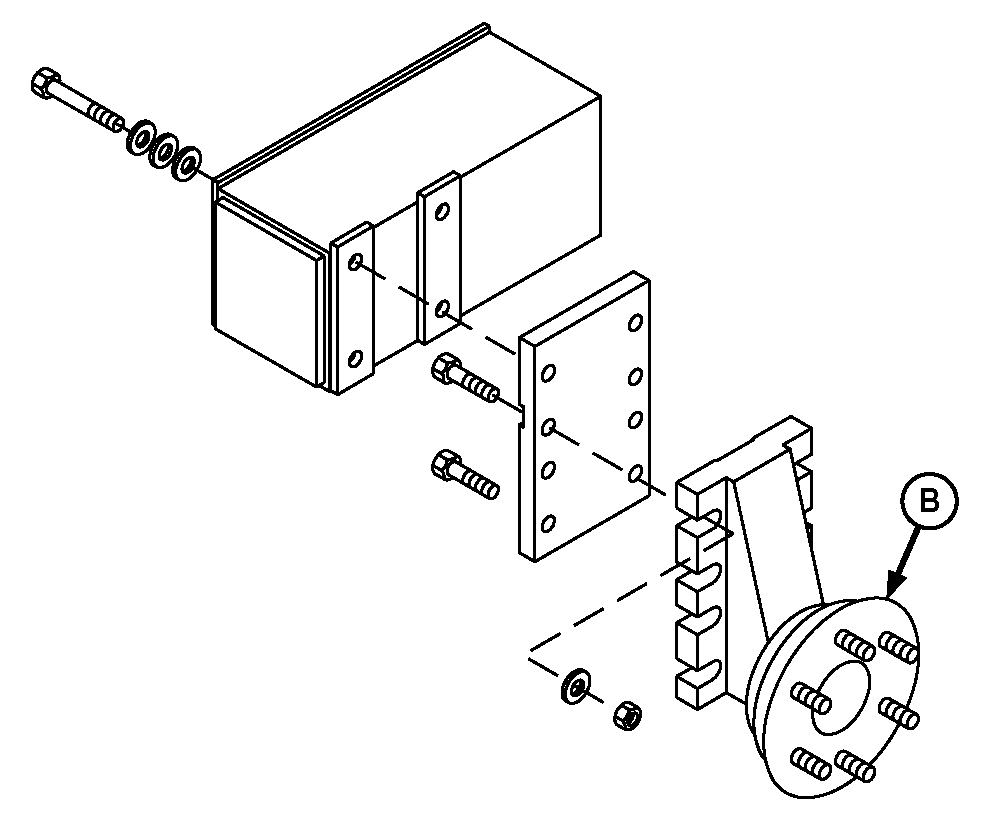

Raised position (B) is recommended for straw crops with tall stubble and soft ground conditions.

• Recommended for push bar.
• Pickup teeth will not touch the ground with pickup completely lowered.

A-Normal Position
B-Raised Position

AG,OUO6017,1587 -19-26OCT99-1/1
