OME97074: 466,144301 466 Silage Special, 144901 and 566145601 Round Balers, Block File: AG_OUO6017_1618_19

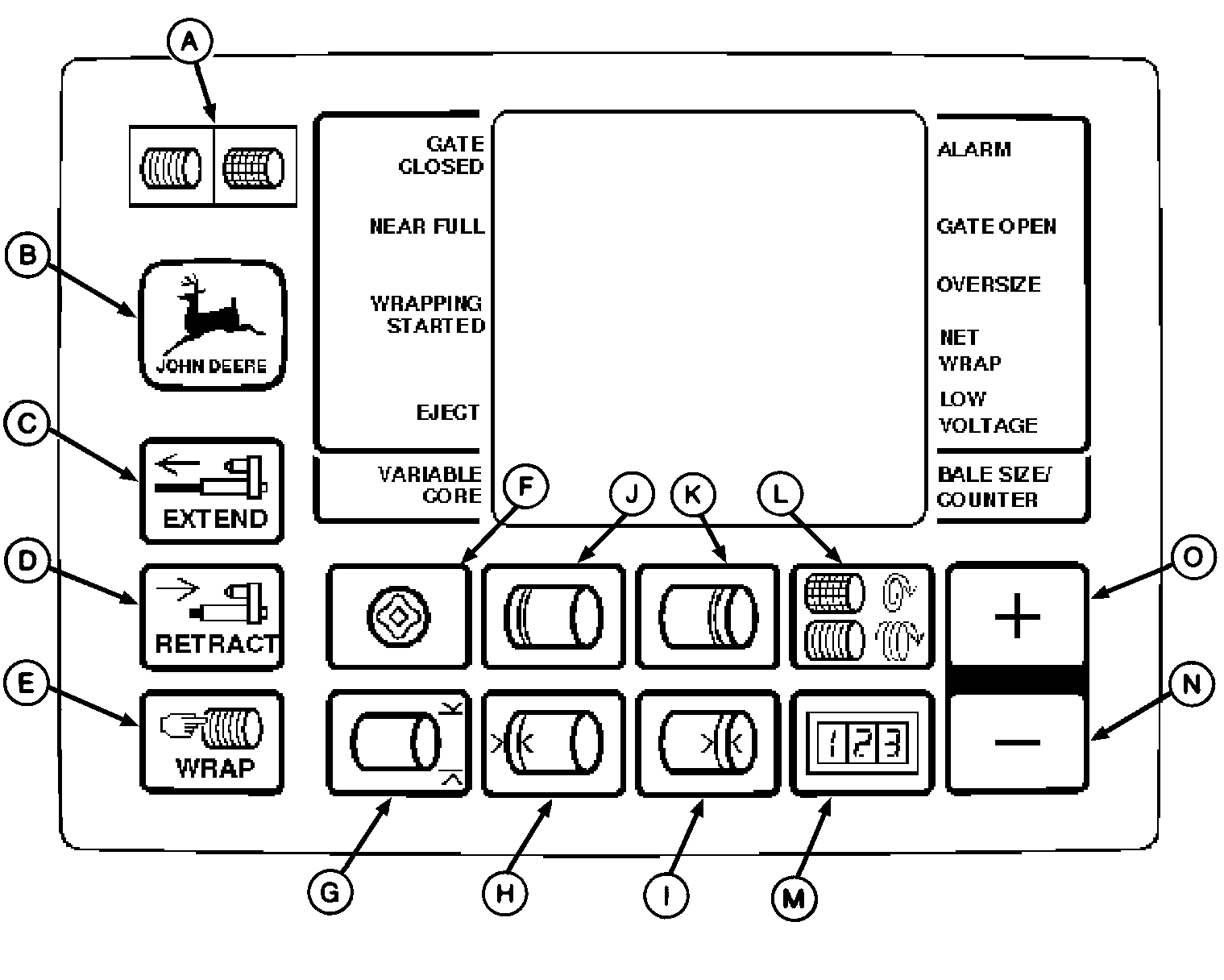

BALETRAK PLUS® Monitor-Controller Keys and Switches

A-Selector Switch (Twine-ON/OFF /Net-ON¹)
B-Set-Up Key
C-Actuator Extend-Manual (Twine Only²)

D-Actuator Retract-Manual (Twine Only²)
E-Wrap Cycle-Manual Start
F-Variable Core Diameter¹
G-Bale Diameter
H-Left-Hand End Wrap Distance (Twine Only)

I-Right-Hand End Wrap Distance (Twine Only)
J-Number of Left-Hand End Wraps (Twine Only)
K-Number of Right-Hand End Wraps (Twine Only)

L-Twine Spacing/Number of Net Wraps
M-Bale Counters
N-Minus Key
O-Plus Key

NOTE: When any key is pressed, except for DEERE Set-Up key (B), buzzer will beep.

BALETRAK PLUS is a trademark of Deere & Company.

¹ Optional equipment.

² Net actuator does not move when EXTEND/RETRACT keys are pressed with selector switch in Net-On. To move net actuator for servicing net unit, see TEST TWINE OR NET ACTUATOR CURRENT (CHANNEL 14) in this section.

AG,OUO6017,1618 -19-03NOV99-1/1
