Setting Twine Spacing

E38438
E47511


A-2 in. (0.05 m) Twine Arm Spacing
B-4 in. (0.10 m) Twine Arm Spacing


C-6 in. (0.15 m) Twine Arm Spacing
D-8 in. (0.20 m) Twine Arm Spacing


E-Spring Pin
F-Twine Symbol


G-Twine Spacing Key

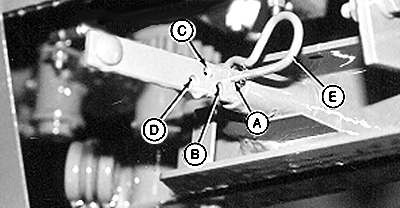

Set Mechanical Twine Arm Spacing:

The monitor-controller maintains twine spacing for various bale diameters at rated PTO speed.

1. Set distance between the twine arms by installing spring pin (E) in the desired position:

HOLE ID TWINE ARM SPACING
A 2 in. (0.05 m)
B 4 in. (0.10 m)
C 6 in. (0.15 m)
D 8 in. (0.20 m)



2. When operating at rated PTO speed, the monitor-controller twine spacing setting should be the same as the mechanical twine arm spacing.

3. When operating less than rated PTO speed, set monitor-controller twine spacing setting less than mechanical twine arm spacing. This number will vary with different PTO speeds. Check twine

spacing on bale and adjust monitor-controller setting to get desired twine spacing.

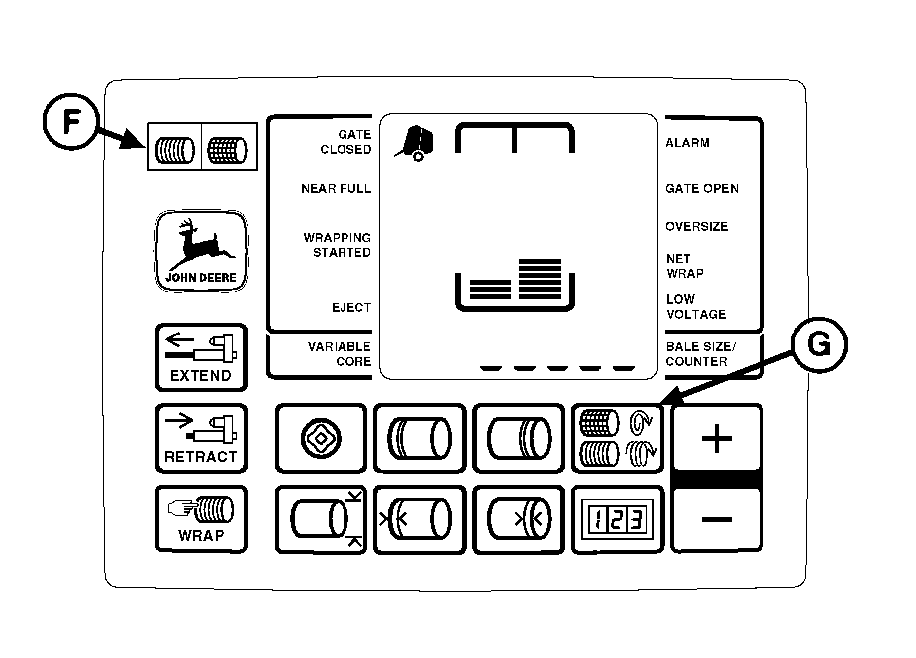

Set Monitor-Controller Twine Spacing:

1. Turn tractor key to ON position. Do not start tractor engine. Set selector switch toward TWINE symbol (F) to turn monitor-controller ON.

2. Press and hold TWINE SPACING key (G). Press PLUS or MINUS keys until desired twine spacing, 2-10 in. (0.05-0.26 m), appears in digital display.

3. Release TWINE SPACING key to enter setting into memory. Be sure monitor-controller twine spacing setting and mechanical twine arm spacing setting agree with each other.

4. Set monitor-controller selector switch to OFF (centered) position. Turn tractor key to OFF position. Remove key.

AG,OUO6017,1631 -19-04NOV99-1/1
