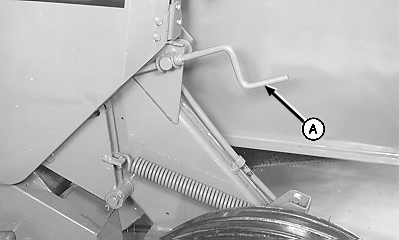

Adjusting Pickup HeightIMPORTANT: Operating with pickup teeth contacting the ground will cause pickup damage. Operate pickup teeth as high as possible yet harvest field adequately. Adjust pickup tooth height to obtain a ground clearance of 25-50 mm (1-2 in.) for an initial setting. The final adjustment will be determined by field conditions. To raise the pickup, turn crank (A) clockwise; to lower the pickup, turn crank (A) counterclockwise. If baler is equipped with a hydraulic pickup lift, the crank acts as the downstop controlling pickup operating height. This feature allows the pickup to return to the same operating height after raising and lowering hydraulically. Always raise pickup to transport position when crossing ditches, moving from field to field, etc. |
|
AG,OUO6017,1652 -19-04NOV99-1/1 |
