Unplugging Baler Under Power

2. Place gate lock valve in "Lock" position (A).

3. Raise belt tension arm with tractor selector valve until upper arm (B) starts to move.

4. Engage PTO.

IMPORTANT: If belts slip, lower belt tension arm. Do not prolong belt slippage as damage may occur to the baler.

5. If belts slip, lower belt tension arm.

6. If baler clears, unlock gate lock valve and continue baling.

7. If baler does not clear, unlock gate, discharge bale, and shut off tractor.

8. With gate open, put gate lock valve in "Lock" position (A).

9. Lower pickup and unplug manually.

10. Raise pickup to operating height.

11. Unlock gate lock valve, lower gate, and continue baling.

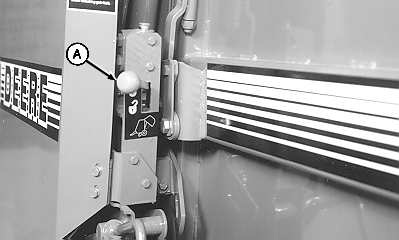

A-Locked Position

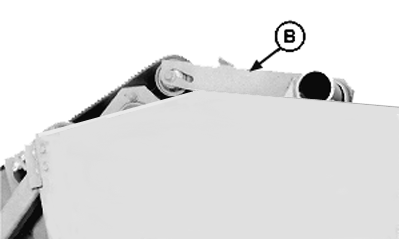

B-Upper Arm

AG,OUO6017,1659 -19-04NOV99-1/2

If baler is equipped with variable (soft) core option (A), unplugging can be done from the tractor station following these steps:

2. Engage PTO slowly to unplug.

3. If baler does not clear, discharge bale and shut off tractor.

4. With gate open, put gate lock valve in "Lock" position.

5. Lower pickup and unplug manually.

6. Raise pickup to operating height.

7. Reset variable core to setting prior to plugging and continue baling.

A-Variable Core Option

AG,OUO6017,1659 -19-04NOV99-2/2
