Installing Compressor Rack Assembly

1. Install compressor rack (A) in left-hand bracket (B).


A-Compressor Rack
B-Left-Hand Bracket

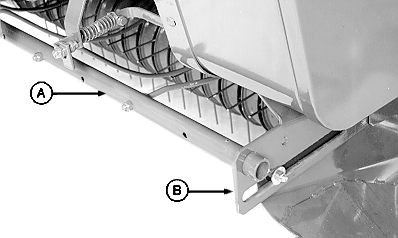

E39587

Wide Pickup Shown

AG,OUO6017,1661 -19-04NOV99-1/2

2. Lift right-hand end and slide compressor rack (A) into bracket (B).

3. Install cap screw and lock nut (C). Install cotter pin (D) into right-hand end of compressor rack tube.

NOTE: Make sure compressor rods do not interfere with twine arm. Adjust individual rods, as necessary, or adjust compressor rack assembly for clearance.

4. Regular or MEGATOOTH ™ Pickup; Adjust to desired operating height. Tighten lock nut (C). (See procedure in this section.)

Wide Pickup (466/466S); Tighten lock nut (C), then back off one to two full turns. This will allow the assembly to pivot freely, requiring no adjustment.

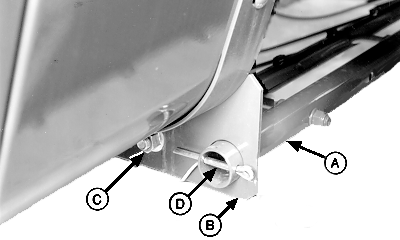

E40061

MEGATOOTH™ Pickup Shown


A-Compressor Rack
B-Bracket
C-Lock Nut
D-Cotter Pin

MEGATOOTH is a trademark of Deere & Company
