PTO Conversion Parts

IMPORTANT: Never hook up a 540 rpm baler to a 1000 rpm tractor.

The baler can be configured to operate with a tractor having 540 or 1000 rpm PTO. Conversion parts are available to adapt to either tractor speed:

• 540 to 1000 rpm
• 1000 to 540 rpm

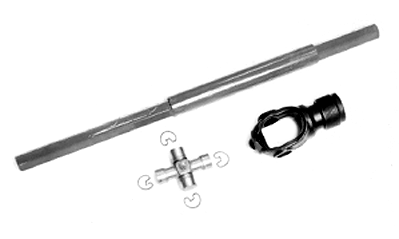

Conversion parts consist of a yoke, cross kit, shaft, and instructions for converting the gear case. Kits can be ordered through your John Deere dealer.

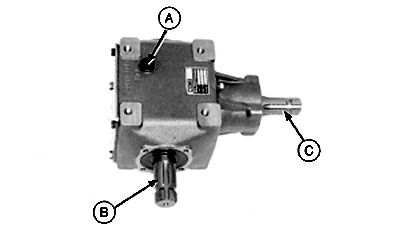

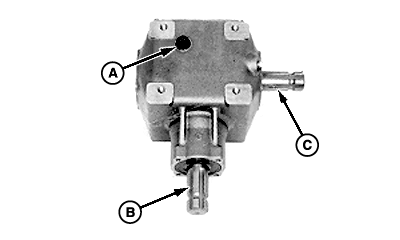

A-Dipstick
B-Input Shaft
C-Output Shaft

AG,OUO6017,1687 -19-04NOV99-1/1
