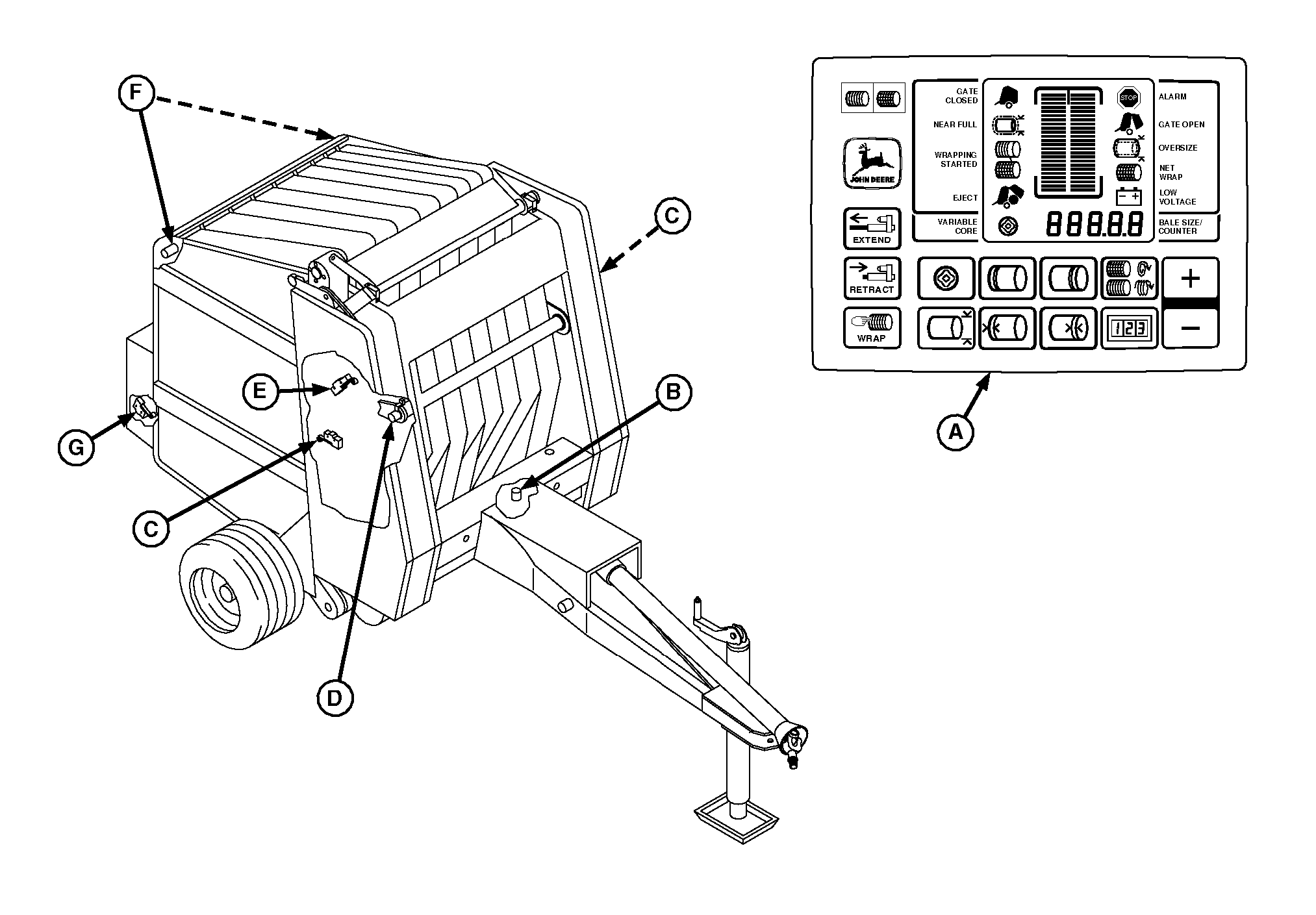

A-Monitor-Controller
B-Twine Wrap Sensor

C-Gate Latch Switches
D-Bale Diameter Sensor

E-Oversize Bale Switch
F-Bale Shape Sensors

G-Net Wrap Switch (If Equipped)

BALETRAK PLUS is a registered trademark of Deere & Company

AG,OUO6017,1707 -19-09NOV99-1/1
