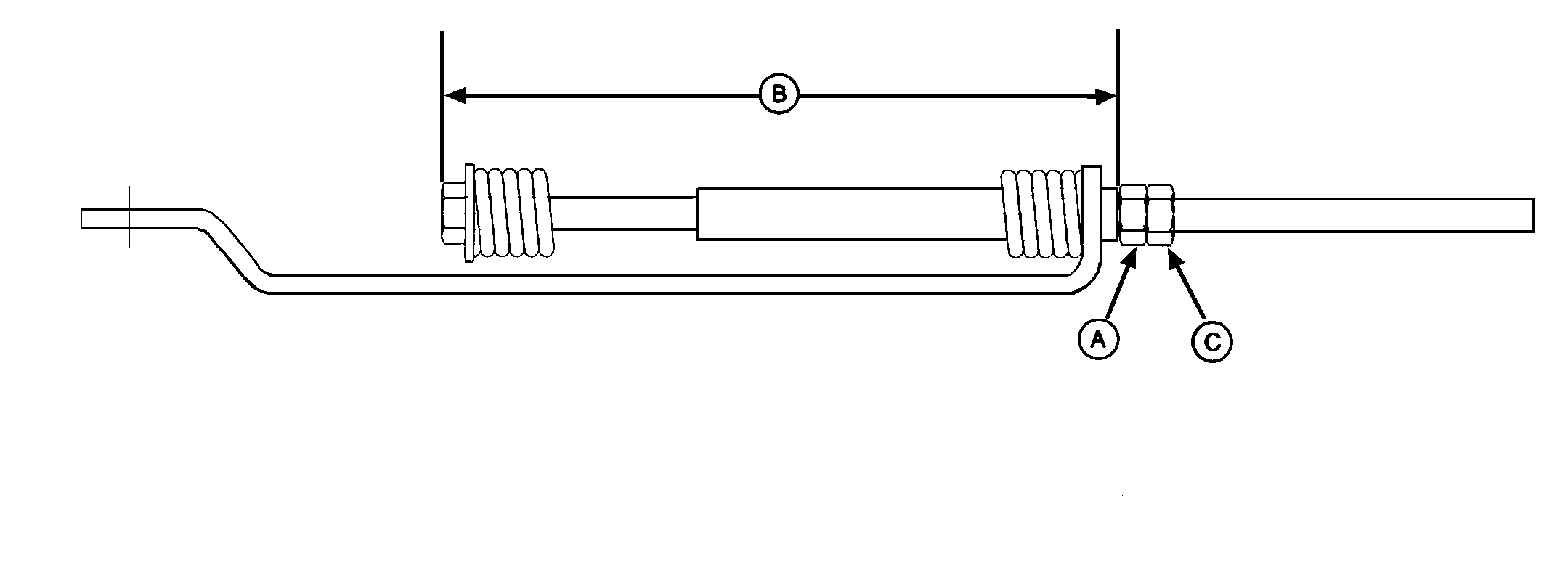

Pickup Idler Spring Dimension-Regular Pickup (466 and 566)

E39757


A-Jam Nut

B-Distance

C-Jam Nut



If spring assembly has been removed, adjust spring assembly as follows:

1. Adjust jam nut (A) until distance (B) is within specifications.

Specification

Pickup Idler Spring -Distance 215 mm (8-1/2 in.)

2. Tighten jam nut (C) against jam nut (A).

3. Install spring assembly onto baler.

4. Adjust pickup belt idler. (See ADJUSTING PICKUP BELT IDLER in this section.)
