OME97074: 466,144301 466 Silage Special, 144901 and 566145601 Round Balers, Block File: AG_OUO6017_1713_19

Adjusting Pickup Belt Idler-Regular Pickup (466 and 566)

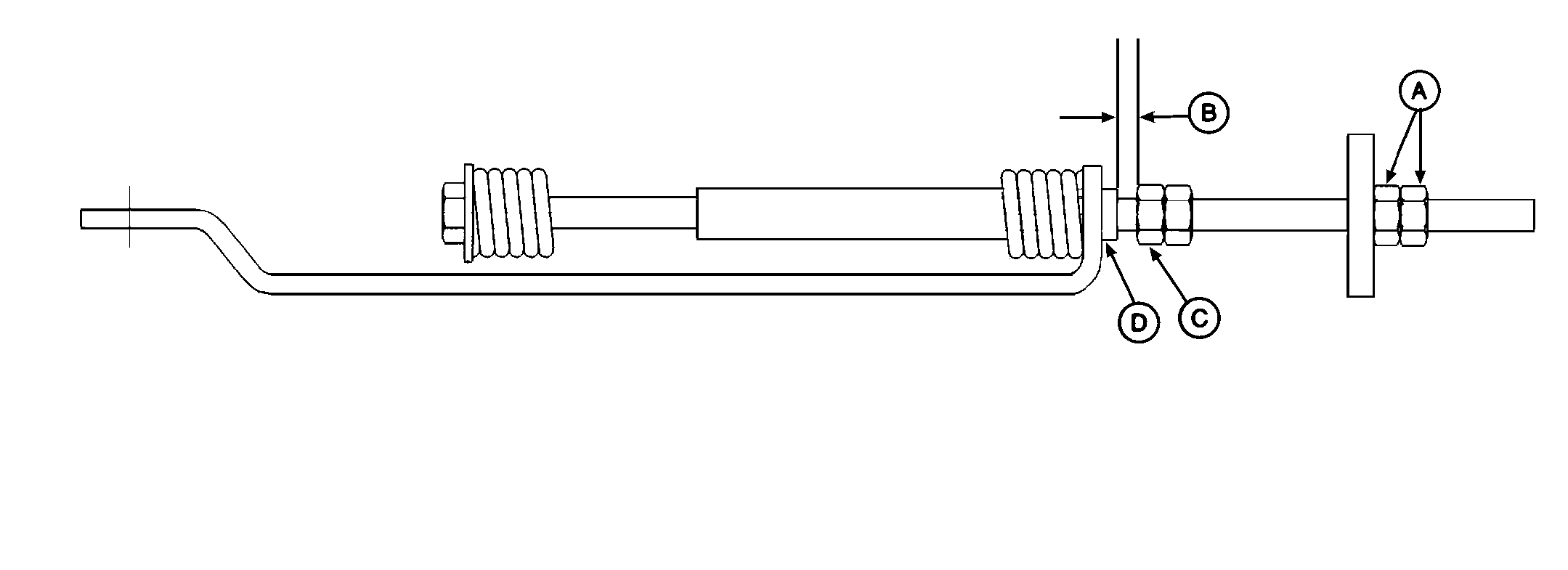

A-Jam Nuts

B-Clearance

C-Jam Nuts

D-Spacer

IMPORTANT: The belt tensioner is designed to protect pickup components; overtightening reduces protection. Check adjustment daily.

Before adjusting idler, engage PTO and observe spacer (D) relative to jam nut (C). If total movement is more than 3 mm (0.118 in.), there may be a burnt or thin spot in the belt. Inspect belt and replace if necessary.

To adjust pickup belt idler:

1. Remove drive shield.

2. Shut off tractor.

3. Loosen jam nuts (A).

4. Adjust spring until clearance (B) between jam nut (C) and top of spacer (D) is within specifications.

Specification

Pickup Belt Idler -Clearance

4-6 mm

(5/32-1/4 in.)

5. Lock jam nuts (A).

6. Install drive shield.

AG,OUO6017,1713 -19-09NOV99-1/1
