Adjusting Pickup Drive Chains- MEGATOOTH™ Pickup

To ensure that all slack is removed from chains, close gate and engage PTO a few seconds. Shut off tractor.

If distance between hooks on spring (A) is less than specifications, remove one link from drive chain (B).

Specification

Pickup Drive Chain Hooks -Distance 270 mm (10-5/8 in.)

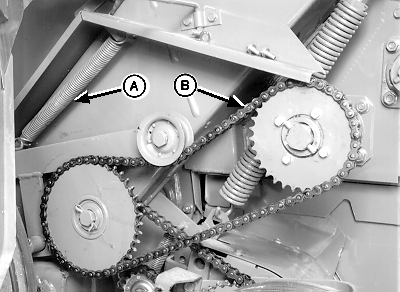

E40499


A-Spring
B-Drive Chain
