Adjusting Pickup Drive Chains-Wide Pickup (466/466S)

To ensure that all slack is removed from chains, close gate and engage PTO a few seconds. Shut off tractor.

Adjust tension on roller chains (A and B) by loosening idler mounting bolt and pressing idler against chain to within specification. Tighten mounting bolt.

Specification

Idler-to-Chain -Pressure 22-44 N (5-10 lb force)

Adjust tension on roller chains (C and D) by loosening idler mounting bolt. Rotate idler to remove slack. Tighten mounting bolt.


A-Feeder Finger Crank Shaft Drive Chain
B-Pickup Drive Chain
C-Right-Hand Drive Chain

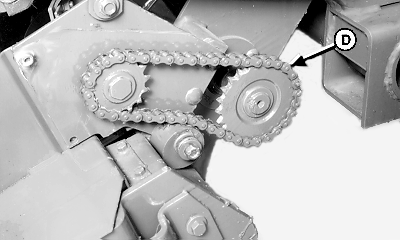

D-Left-Hand Drive Chain

E39688
E39664

AG,OUO6017,1715 -19-09NOV99-1/2

If distance between hooks on spring (A) is less than specifications, remove one link from drive chain (B).

Specification

Pickup Main Drive Chain Hooks -Distance 270 mm (10-5/8 in.)


A-Spring
B-Drive Chain

E39663

AG,OUO6017,1715 -19-09NOV99-2/2
