Adjusting Lower Drive Roll Chain (466 and 566)

To ensure that all slack is removed from chains, close gate and engage PTO a few seconds. Shut off tractor engine and remove key.

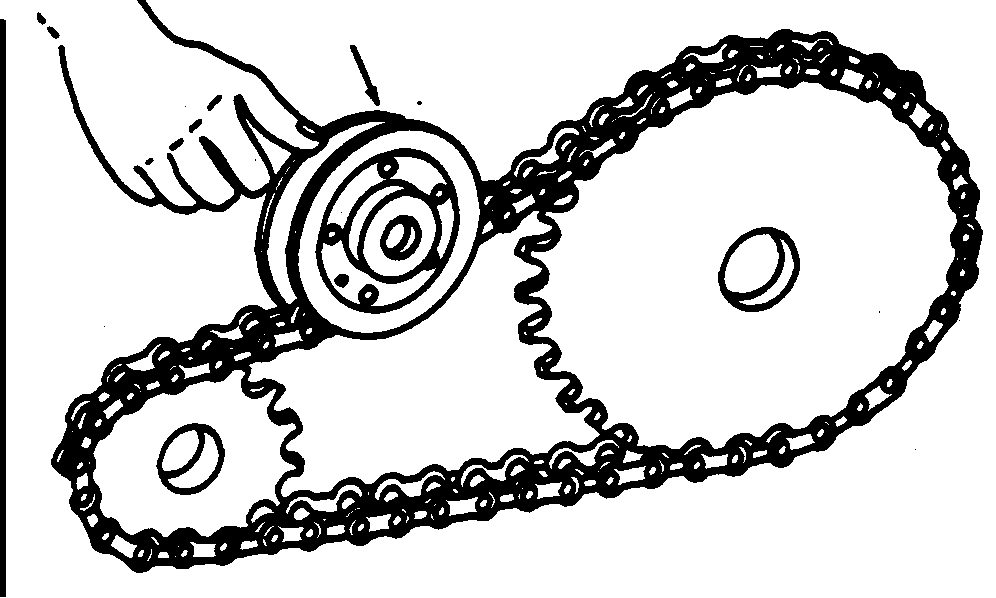

Adjust tension on all roller chains by loosening idler mounting bolts and pressing idler against chain to within specifications.

Specification

Idler-to-Chain -Pressure 22-44 N (5-10 lb force)

Tighten idler mounting cap screw to specifications

Specification

Idler Mounting Cap Screw -Torque 163 N·m (120 lb-ft)

Readjust if necessary.
