Adjusting Lower Belt and Cleaning Auger Drive Roll Chain (466S)

To ensure that all slack is removed from chains, close gate and engage PTO a few seconds. Shut off tractor.

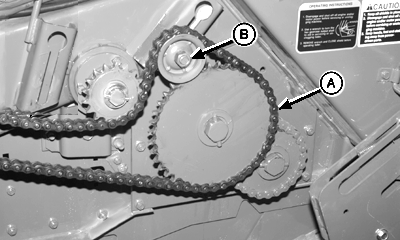

Adjust tension on lower belt drive roll chain (A) by loosening idler mounting nut (B) and pressing idler against chain to within specifications.

Specification

Idler-to-Chain -Pressure 22-44 N (5-10 lb force)

Tighten idler mounting nut to specifications. Readjust as necessary.

Specification

Idler Mounting Nut -Torque 163 N·m (120 lb-ft)

E41052

AG,OUO6017,1721 -19-09NOV99-1/1
