Adjusting Belt Tracking

IMPORTANT: If baler is equipped with net wrap, check for a 1-3 mm (0.039-0.118 in.) gap at the lower front belt guide straps. If there is too much gap, belts will not track correctly and cause damage to the belts. (See CHECKING AND ADJUSTING LOWER NET WRAP GUIDE in Service-Net Wrap section.)

NOTE: Belt tracking must be checked before adjustments are made. (See CHECKING BELT TRACKING in this section)

1. If belts are not centered at the lower belt guide (A), make the following adjustment:

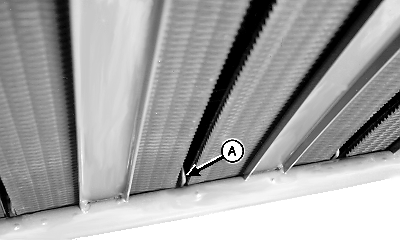

      E40605


      A-Belt Guide

    AG,OUO6017,1724 -19-10NOV99-1/5

      NOTE: If baler is equipped with net wrap and the belts track to the right, lower right-hand end of lower rear gate roll.

    • If belts track to the left, raise RIGHT-HAND end of lower rear gate roll (B). If net wrap unit is installed, lower RIGHT-HAND end of lower rear gate roll (B).

    • If belts track to the right, raise LEFT-HAND end of lower rear gate roll.

      NOTE: Light contact with belt guides is acceptable.

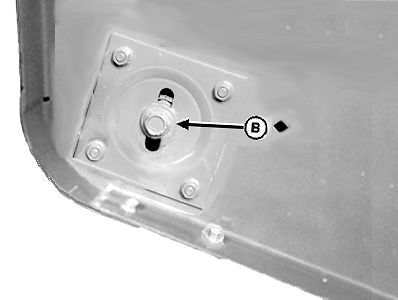

      E40606


      B-Lower Rear Gate Roll

    AG,OUO6017,1724 -19-10NOV99-2/5

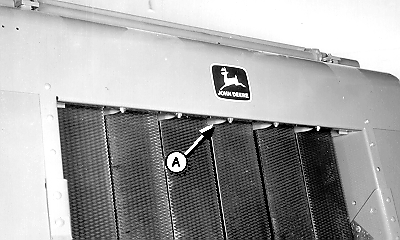

    E39723
      E39722


    A-Front Belt Guide

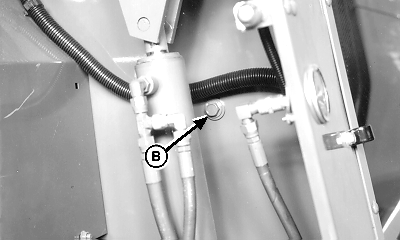

    B-Front Idler Roll



      2.

      If belts are not centered at the upper front belt guide (A), make the following adjustments:

      • If belts track to the right, raise the RIGHT-HAND end of the front idler roll (B)
    • If belts track to the left, raise the LEFT-HAND end of the front idler roll (B).

      NOTE: Light contact with belt guides is acceptable.

    AG,OUO6017,1724 -19-10NOV99-3/5

        3.

        If belts are not centered at the upper rear guide, make the following adjustment:

        • If belts track to the right, move the RIGHT-HAND end of the take up roll (A) in the direction shown in the short leg portion of the "L" shaped slot.

        • If belts track to the left, move the LEFT-HAND end of the take-up roll (A) in the direction shown in the short leg portion of the "L" shaped slot.

          NOTE: Light contact with belt guides is acceptable.

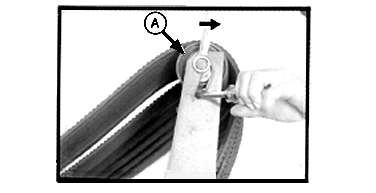

        A-Take-Up Roll

      E39725

    AG,OUO6017,1724 -19-10NOV99-4/5

          4.

          If outside belts track to the outside, rubbing the lower belt guide or side of baler, adjust as follows:

          • Move roller from the normal outside position (A) on the sender arm to inside position (B). The belt will track towards the middle of the baler.

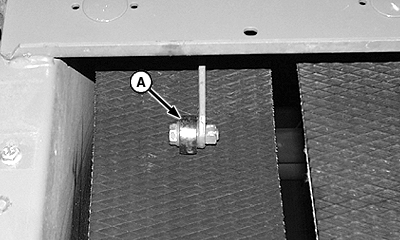

          A-Roller (Normal Outside Position)

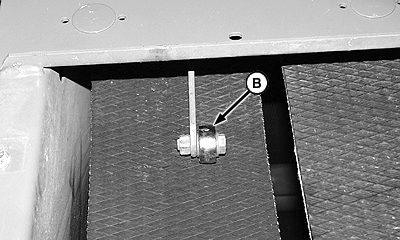

          B-Roller (Inside Position)

      E47618

      Left-Hand Side Shown

      E47619

    AG,OUO6017,1724 -19-10NOV99-5/5
