A-Dimension

If hydraulic pickup lift cylinder has been removed, adjust cylinder block before installing cylinder.

1. Extend cylinder fully.

2. Install cylinder stop, jam nut, washer (wide pickup only), and end block onto cylinder rod.

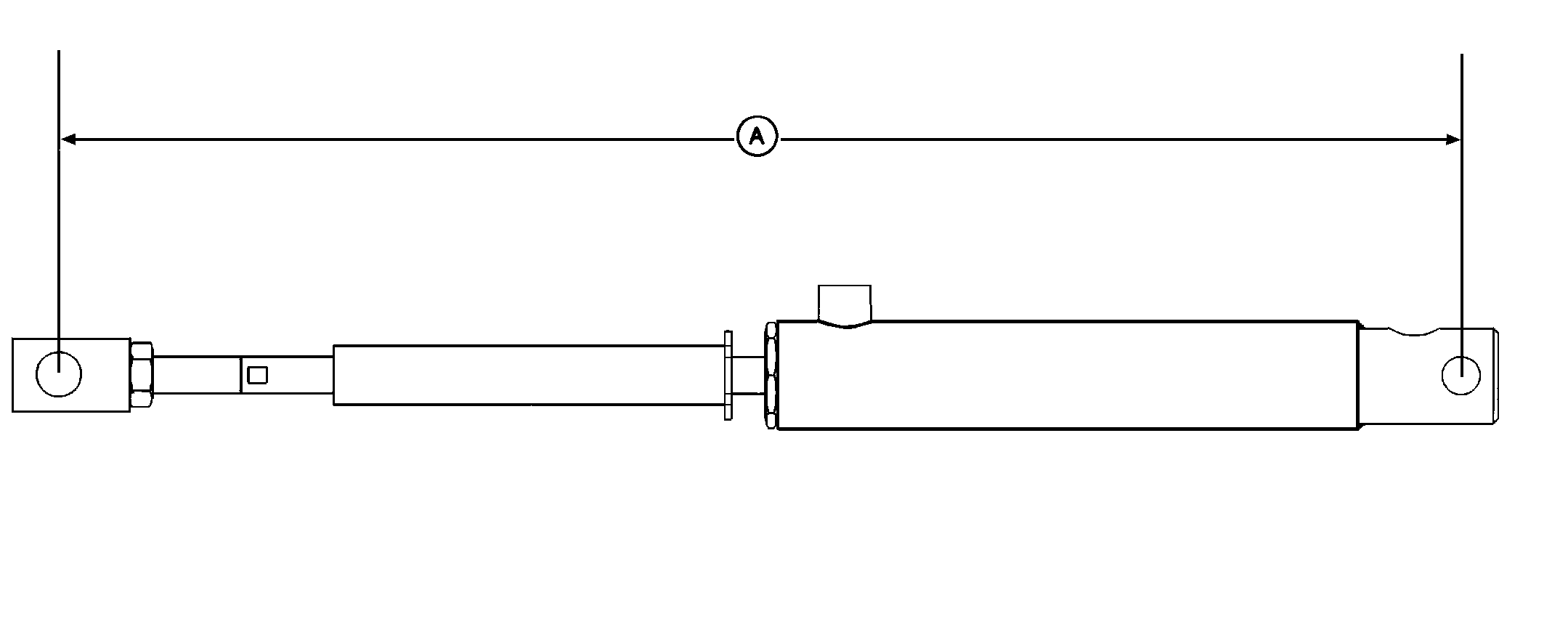

3. Turn cylinder rod into end block until distance (A) from center of hole in base end of cylinder to center

hole in end block is within specifications.

Specification

Center of Hole in Base End of Cylinder-to-Center Hole in End Block -Distance

606 mm

(23-7/8 in.)

4. Install cylinder onto baler.
