Adjusting Gate Latch Linkage

1. Close gate completely. Make sure gate cylinders are fully retracted.

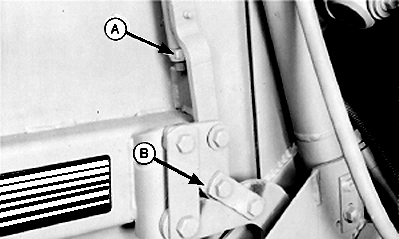

2. Adjust nut (A) until plate (B) just touches relief notch in hook.

3. Repeat on opposite side.


A-Nut
B-Plate

E39717

AG,OUO6017,1747 -19-12NOV99-1/1
