OME97074: 466,144301 466 Silage Special, 144901 and 566145601 Round Balers, Block File: AG_OUO6017_1750_19

1. Set monitor-controller selector switch to OFF (centered) position. Turn tractor key to OFF position. Remove key.

2. Disconnect wiring connector and remove hardware to replace sensor (A).

3. Install new sensor. Leave hardware loose for adjustment.

4. Adjust sensor. (See ADJUSTING BALE SHAPE SENSOR [CHANNELS 07 AND 09-WITH SOUND] in this section.)

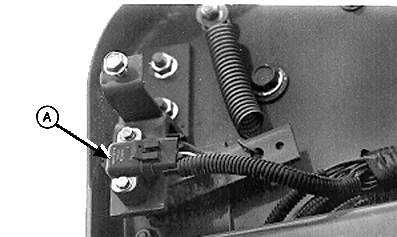

Right-Hand Shown

A-Sensor

AG,OUO6017,1750 -19-12NOV99-1/1
