Removing and Installing Net Wrap V-Belt

2. Start tractor and raise tension arm fully using tractor hydraulics.

3. Set monitor switch to NET.

4. Press WRAP button to return net knife to home (forward) position.

5. Stop engine. Turn tractor key to OFF position. Remove key. Turn off monitor.

6. Open net wrap cover.

AG,OUO6040,462 -19-22OCT99-1/2

8. Remove brace (C) and shim. Remove gate roll support (D).

9. Remove belt (E) from net wrap roll sheave (F), idler sheave (G), and gate roll sheave (H).

10. Install new belt around sheaves.

11. Install spring (B). Fasten with washer and cotter pin (A).

12. Install gate roll support (D), shim and brace (C).

13. Check clearance between roll and hole in sidesheet.

14. Start tractor and use hydraulics to lower tension arm fully.

15. Stop engine. Turn tractor key to OFF position. Remove key.

16. Unlock gate.

17. Check knife edge to rear net guide adjustment. (See CHECKING NET WRAP V-BELT IDLER ARM ADJUSTMENT in this section.)

18. Check belt tracking (See ADJUSTING BELT TRACKING in Service-Baler section.)

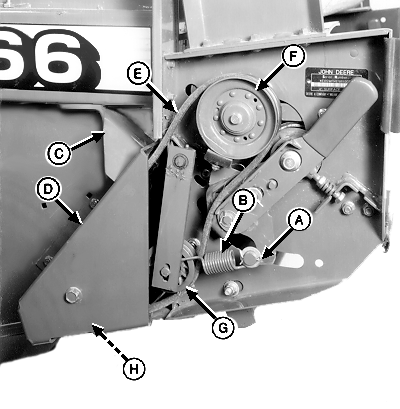

A-Cotter Pin
B-Spring
C-Brace
D-Gate Roll Support
E-Belt
F-Net Wrap Roll Sheave
G-Idler Sheave
H-Gate Roll Sheave

AG,OUO6040,462 -19-22OCT99-2/2
