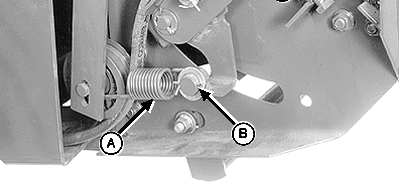

Removing Net Wrap ActuatorNOTE: Use monitor-controller channel 14 when removing net wrap actuator. This allows EXTEND and RETRACT keys to control actuator position and remove load from actuator mounting pins. 1. Open net wrap cover. 2. At left-hand side, remove cotter pin (B), washer, and spring (A).
|
|
AG,OUO6040,464 -19-22OCT99-1/2 |
|
NOTE: The actuator shield has slotted mounting holes so mounting bolts do not have to be removed. 3. Remove actuator shield. IMPORTANT: Current overload protection to net actuator is bypassed when using channel 14. Extended use of channel 14 may cause actuator damage. 4. Turn tractor key to ON position. Do not start tractor engine. 5. Press and hold DEERE key. Set selector switch to NET symbol to turn monitor-controller ON. "CH 01" will appear in the digital display. 6. Continue to hold DEERE key and press PLUS key to advance to "CH 14". Release DEERE key. NOTE: Retracting the actuator completely will cause the mounting pins to bind. 7. Press and hold EXTEND or RETRACT key to move actuator (C) back and forth to release load from mounting pins (A and B). 8. Set monitor-controller selector switch to OFF (centered) position. Turn tractor key to OFF position. Remove key. Disconnect monitor-controller power plug from tractor convenience outlet. 9. Remove tie band securing actuator wiring connector. 10. Disconnect actuator wiring connector. NOTE: Record location of washers on mounting pins used to aid in installation of actuator. 11. Remove mounting pins (A and B), washers, and actuator (C). |
|
AG,OUO6040,464 -19-22OCT99-2/2 |
