OME97074: 466,144301 466 Silage Special, 144901 and 566145601 Round Balers, Block File: AG_OUO6040_473_19

Checking and Adjusting Net Wrap Feed Roll Brake

NOTE: Check knife arm stop adjustment before checking feed roll brake adjustment. (See ADJUSTING NET WRAP KNIFE ARM STOP in this section.)

1. Open net wrap cover.

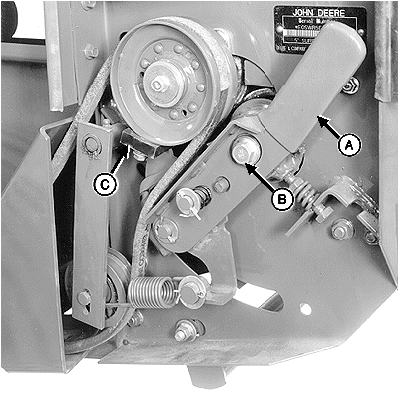

2. Make sure brake lever (A) is engaged on bolt (B).

3. Turn tractor key to ON position. Do not start tractor engine. Set monitor-controller selector switch to NET symbol to turn monitor-controller ON.

4. Press WRAP key to cycle net actuator.

causym CAUTION: To avoid personal injury from unexpected knife movement, disconnect net actuator wiring connector or power plug.

5. Set monitor-controller selector switch to OFF (centered) position. Turn tractor key to OFF position. Remove key. Disconnect monitor-controller power plug from tractor convenience outlet.

6. Check that brake pad (C) contacts belt sheave. If not, loosen nut on brake pad. Install shims (D), as needed, between brake pad (C) and bracket (E) until brake pad (C) contacts belt sheave.

7. Release brake lever (A), install one more shim, and tighten nut. Engage brake lever (A).

8. Connect monitor-controller power plug to tractor convenience outlet. Turn tractor key to ON position. Set monitor-controller selector switch to NET symbol to turn monitor-controller ON.

9. Press WRAP key to cycle net wrap.

10. Set monitor-controller selector switch to OFF (centered) position. Turn tractor key to OFF position. Remove key. Disconnect monitor-controller power plug from tractor convenience outlet.

A-Brake Lever
B-Bolt
C-Brake Pad
D-Shims
E-Bracket

AG,OUO6040,473 -19-22OCT99-1/3

IMPORTANT: Do not tighten bolt (A) more than 47 N·m (35 lb-ft) or damage to bolt may occur.

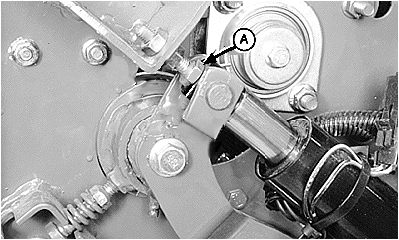

11. Make sure actuator rod contacts stop bolt (A). Check roller torque by turning bolt (B) clockwise with torque wrench. Roller torque should be within specification for brake sheave to slip against rubber pad.

Specification

Rubber Pad Brake-to-Sheave -Brake Roller Torque

20-47 N·m

(14-34 lb-ft)

If torque is less than specification, net cutoff may not function correctly and adjustment shims should be installed.

12. To adjust feed roll brake:

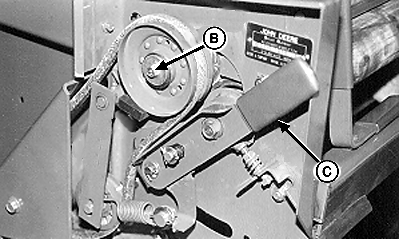

a. Release feed roll brake by pulling outward on lever (C).

NOTE: If worn, rubber brake pad can be reversed.

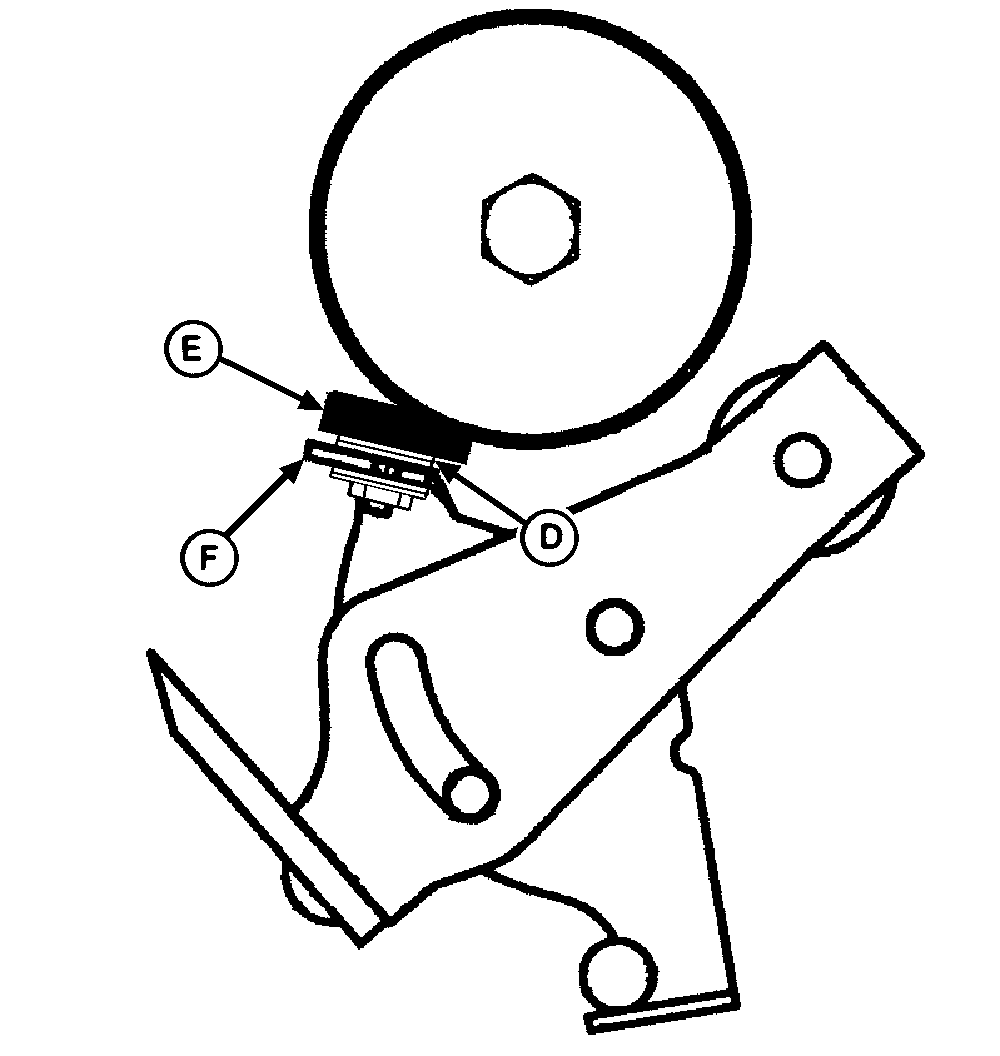

b. Loosen nut. Install shims (D) one at a time, between brake pad (B) and bracket (C) until torque is within specifications. Put extra shims under bracket (C).

IMPORTANT: After making this adjustment, turn monitor-controller ON. Press WRAP key to return net knife arms to home position. Turn monitor-controller off to cancel STOP alarm. If this procedure is not followed, net will be fed continuously during the next bale.

c. Connect monitor-controller power plug to tractor convenience outlet. Turn tractor key to ON position. Set monitor-controller selector switch to NET symbol to turn monitor-controller ON.

d. Press WRAP key to cycle net wrap actuator. Knife at home (forward) position.

A-Stop Bolt
B-Bolt
C-Lever
D-Shims
E-Rubber Brake Pad
F-Bracket

AG,OUO6040,473 -19-22OCT99-2/3

e. Set monitor-controller selector switch to OFF (centered) position. Turn tractor key to OFF position. Remove key. Disconnect monitor-controller power plug from tractor convenience outlet.

f. Check feed roll brake torque with actuator rod contacting stop bolt (D). If torque is not within specifications, repeat procedure.

13. Close net wrap cover.

AG,OUO6040,473 -19-22OCT99-3/3
