Setting Pickup Feeder Forks (Wide Pickup-466/466S)

The wide pickup feeder forks can be set into two working positions. When making an adjustment, make sure all three feeder forks are set in the same position.

IMPORTANT: To prevent damage to the pickup when baling in silage, make sure all three feeder forks are positioned in the lower hole.

Position (A):

This position is used for most crop conditions including small diameter and silage bales.

Position (B):

This position is used for difficult conditions such as short, dry, slick crops. This position maximizes the feeder fork stroke into bale chamber.

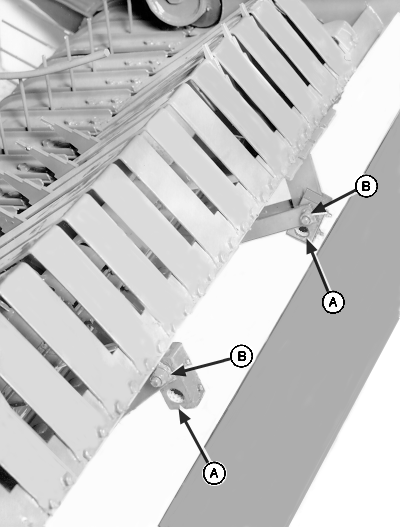

A-Position for Most Crop Conditions
B-Position for Difficult Conditions

EX,566J,O -19-06FEB96-1/1
