Connecting Baler Wiring Harnesses to Tractor
E40171

BALE WATCH™ Monitor
E40172

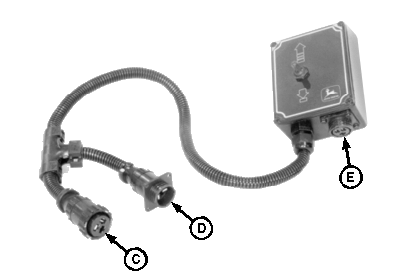

Electric Actuated Twine Wrap Controller

1. Route baler wiring harness(es) into tractor operator's platform/station.

2. Connect baler six-pin DEUTSCH ™ connector to BALE WATCH ™ harness connector (A). Power plug (B) is connected to tractor convenience outlet or outlets (G or D), if equipped.

3. Connect remaining baler wiring harnesses, if equipped:

  • Electric Actuated Twine Wrap Controller; Connect baler electric twine wrap actuator harness connector to outlet (E). Power plug (C) is connected to tractor convenience outlet and BALE WATCH™ power plug (B) is connected to outlet (D).
  • Net Wrap Controller; Connect baler net wrap actuator harness connector to mating half (F). Power plug (H) is connected to tractor convenience outlet and BALE WATCH™ power plug (B) is connected to outlet (G).


    A-Harness Connector
    B-BALE WATCH™ Power Plug
    C-Power Plug
    D-Outlet
    E-Outlet
    F-Mating Half of Actuator Harness Connector
    G-Outlet
    H-Power Plugs

    E40173

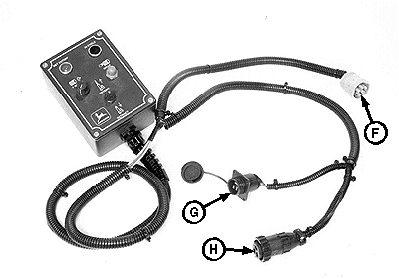

    Net Wrap Controller

    E39252

    WYE-Connection Adapter

DEUTSCH is a trademark of Deutsch Co.
BALE WATCH is a trademark of Deere & Company

AG,OUMX005,1309 -19-18MAR00-1/2

  • Variable (Soft) Core Solenoid Valve; Connect baler solenoid valve power plug to either outlet (J or K) at WYE-Connection Adapter. Power plug (I) is connected to tractor convenience outlet. Outlet (J or K) is available for BALE WATCH™ power plug (B) or power plugs (C or H), if equipped.
