Adjusting Twine Guide(s) (If Equipped)

IMPORTANT: Do not use positions (A or B) on twine guide. Pickup teeth will contact twine arms causing damage.

NOTE: The 456/456S Baler is equipped with left-hand twine guide only.

The twine guide(s) control twine wrap distance from end of bale. Twine wrap distance can be adjusted from 76-178 mm (3-7 in.) at 25 mm (1 in.) increments.

If equipped with starter roll scraper, twine wrap distance can be adjusted from 76-152 mm (3-6 in.).

For most baling conditions, adjust twine guide(s) to position (E). This setting will position twine end wraps approximately 127 mm (5 in.) from end of bale.

For dry, slick crops such as straw, coastal Bermuda grass, or flax, increase twine wrap distance to prevent twine from falling off bale.

For crops, such as alfalfa, that fill the bale ends well and produce square shoulders, decrease twine wrap distance to improve bale appearance and reduce bale spoilage.

To adjust guide:

1. Remove spring pin.

2. Move guide as follows:

• Toward baler sidesheet to increase twine end wrap distance
• Away from baler sidesheet to decrease twine end wrap distance

3. Align holes and install spring pin.

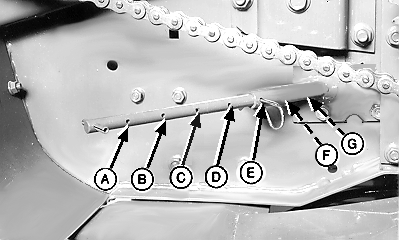

A-Not Used
B-Not Used
C-Twine End Wrap Distance-178 mm (7 in.)
D-Twine End Wrap Distance-152 mm (6 in.)
E-Twine End Wrap Distance-127 mm (5 in.)
F-Twine End Wrap Distance-102 mm (4 in.)
G-Twine End Wrap Distance-76 mm (3 in.)

AG,OUMX005,1315 -19-18MAR00-1/2

NOTE: The 456/456S Baler is equipped with left-hand twine guide only.

The twine guide controls twine wrap distance from left-hand end of bale. Twine wrap distance can be adjusted from 89-190 mm (3.5-7.5 in.) at 25 mm (1 in.) increments.

For most baling conditions, adjust twine guide to position (B). This setting will position twine end wraps approximately 114 mm (4.5 in.) from end of bale.

For dry, slick crops such as straw, coastal Bermuda grass, or flax, increase twine wrap distance to prevent twine from falling off bale.

For crops, such as alfalfa, that fill the bale ends well and produce square shoulders, decrease twine end wrap distance to improve bale appearance and reduce bale spoilage.

To adjust guide:

1. Loosen knob.

2. Move knob as follows:

• Toward baler sidesheet to increase twine end wrap distance
• Away from baler sidesheet to decrease twine end wrap distance

3. Tighten knob.

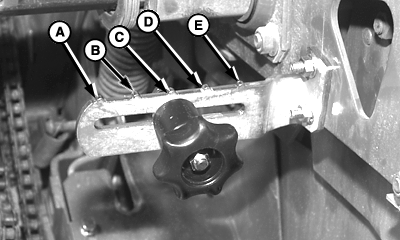

A-Twine End Wrap Distance-89 mm (3.5 in.)
B-Twine End Wrap Distance-114 mm (4.5 in.)
C-Twine End Wrap Distance-140 mm (5.5 in.)
D-Twine End Wrap Distance-165 mm (6.5 in.)
E-Twine End Wrap Distance-190 mm (7.5 in.)

AG,OUMX005,1315 -19-18MAR00-2/2
