Installing Compressor Rack Assembly

1. Install compressor rack (A) in left-hand bracket (B).

A-Compressor Rack
B-Left-Hand Bracket

AG,OUMX005,1319 -19-18MAR00-1/2

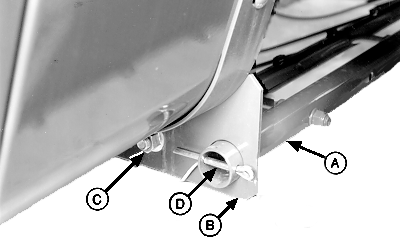

2. Lift right-hand end and slide compressor rack (A) into bracket (B).

3. Install cap screw and lock nut (C). Install cotter pin (D) into right-hand end of compressor rack tube.

NOTE: Make sure compressor rods do not interfere with twine arms. Adjust individual rods, as necessary, or adjust compressor rack assembly for clearance.

4. Regular or MEGATOOTH ™ pickup; Adjust to desired operating height. Tighten lock nut (C). (See ADJUSTING PICKUP HEIGHT in this section.)

Wide Pickup (456/456S); Tighten lock nut (C), then back off one to two full turns. This will allow the assembly to pivot freely, requiring no adjustment.

A-Compressor Rack
B-Bracket
C-Lock Nut
D-Cotter Pin

MEGATOOTH is a trademark of Deere & Company

AG,OUMX005,1319 -19-18MAR00-2/2
