Every 10 Hours

Chains

causym CAUTION: To help prevent injury, do not lubricate chains with machine running.

Liberally apply SAE 30 or heavier oil to chains every 10 hours of operation.

Lubricate chains immediately after operation when the chains are still warm. Let the machine stand idle for a short period to ensure effective oil penetration, resulting in longer chain life.

TS284

AG,OUMX005,1334 -19-19MAR00-1/5

E39200
E39201

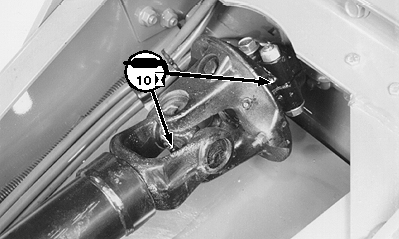

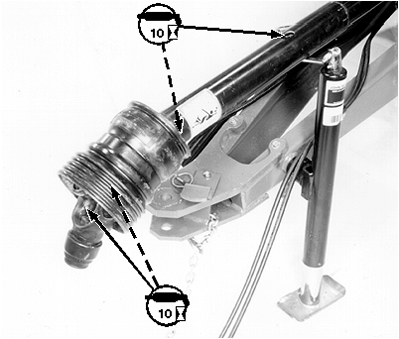

PTO Driveline
E39734

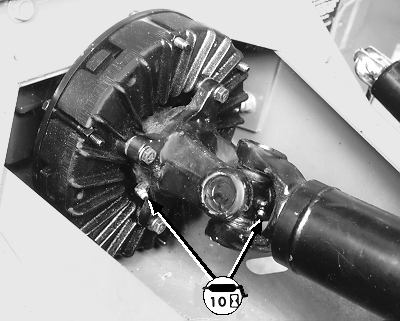

Slip Clutch (If Equipped)

AG,OUMX005,1334 -19-19MAR00-2/5

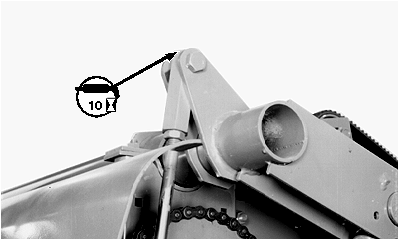

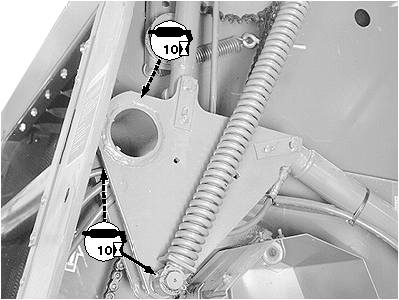

Tension Arm and Cylinder Pivots

Lubricate tension arm and cylinder pivots on both sides of machine.

E40179

Left-Hand Side Shown

E39230

AG,OUMX005,1334 -19-19MAR00-3/5

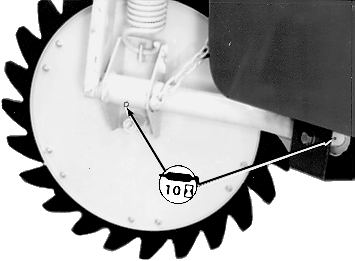

Gathering Wheels and Support Pivot (If Equipped)
E39589

AG,OUMX005,1334 -19-19MAR00-4/5

Pickup Feeder Finger Links (Wide Pickup-456/456S)

If link is installed in lower hole, grease fittings (A and B) only.

If link is installed in top hole, grease fittings (A and C) only.

Lubricate both feeder finger links.


A-Lubrication Fitting
B-Lubrication Fitting
C-Lubrication Fitting
