Twine Electric Actuator Installation Adjustment

CAUTION: Twine arms can move unexpectedly when twine arm power is on. Stay out of the path of twine arms at all times when twine arm power is on. During service or adjustment procedures for twine arms or twine cutter mechanism, turn off power to twine arms BEFORE placing your hands in the path of twine arm travel.

If there is crop material which is holding twine arms from moving freely during twine arm cycle, it is recommended that twine arms be manually positioned to release any "hold" they may have on the crop material. Turn off power to twine arms. This will help to make the unplugging operation easier and prevent twine arms from moving unexpectedly while your hands may be in the path of the twine arms. Stay out of the path of twine arms at all times when power to twine arms is ON.

NOTE: The 556 Baler is illustrated for the following procedure. On the 456/456S Baler, actuator is installed on left-hand side.

If electric actuator has been removed or replaced, or the twine cutter tension adjustment cannot be made by moving washers on the cutter strap, make the following adjustment:

AG,OUMX005,1367 -19-19MAR00-1/6

1. 456/456S : If equipped with MEGATOOTH ™ pickup; Remove quick-lock pin (A) and rotate left-hand curtain (B) away from front frame.

556 : If equipped with MEGATOOTH™ pickup; Remove quick-lock pins and rotate both left and right-hand curtains away from front frame.

A-Quick-Lock Pin
B-Left-Hand Curtain

MEGATOOTH is a trademark of Deere & Company

AG,OUMX005,1367 -19-19MAR00-2/6

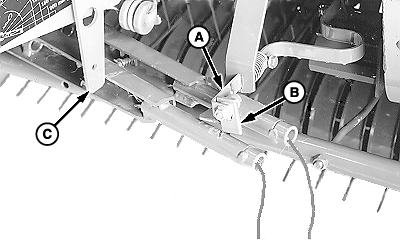

2. Adjust cutter strap (A) by putting two washers in front of contact tab (B) and four washers behind contact tab. If equipped, make sure twine arm stop (C) is in the down position.

3. Turn tractor key to ON position.

A-Cutter Strap
B-Contact Tab
C-Twine Arm Stop

AG,OUMX005,1367 -19-19MAR00-3/6

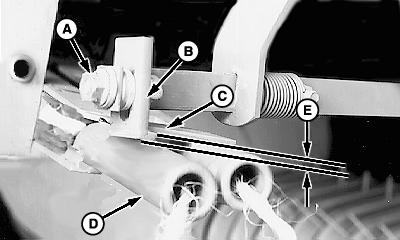

4. Move twine arms, using toggle switch on twine wrap controller, until twine arm (D) lightly contacts tab (B) and strap (C).

5. Turn tractor key to OFF position. Remove key.

6. Loosen nut (A) and adjust tab (B) to obtain overlap (E) between bottom edge of tab (B) and bottom side of strap (C) to specifications. Keep tab (B) vertical and tighten nut (A).

Specification

7. Turn tractor key to ON position.

8. Move twine arms completely forward using toggle switch on twine wrap controller.

9. Turn tractor key to OFF position. Remove key.

10. Check overlap dimension (E). Front twine arm must pass under tab (B). If necessary, adjust tab (B). Light contact between tab (B) and front twine arm (D) is acceptable.

11. Turn tractor key to ON position.

12. Move twine arms behind twine cutter using toggle switch on twine wrap controller.

13. Turn tractor key to OFF position. Remove key.

A-Nut
B-Tab
C-Strap
D-Twine Arm
E-Overlap

AG,OUMX005,1367 -19-19MAR00-4/6

CAUTION: Be careful when working around the knife. It is sharp.

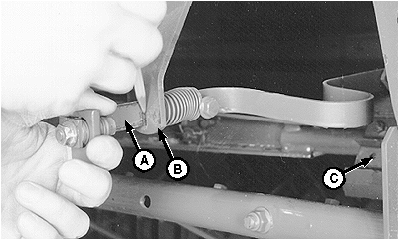

14. Pull cutter strap (A) gently forward until knife (C) contacts hex anvil. Remove slack, but DO NOT deform cutter strap.

15. Mark along cutter strap (A) at support (B), as shown.

A-Cutter Strap
B-Support
C-Knife

AG,OUMX005,1367 -19-19MAR00-5/6

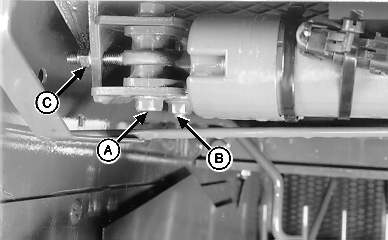

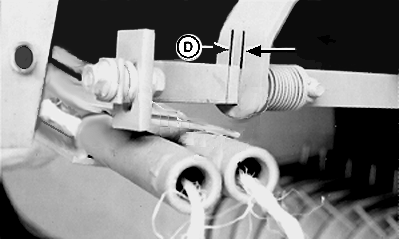

A-Cap Screw

B-Cap Screw

C-J-Bolt Nut

D-Twine Cutter Dimension

16. Loosen two cap screws (A and B), and J-bolt nut (C).

17. Move cap screw (A) to end of slot toward actuator.

18. Tighten cap screws (A and B) just enough so actuator pivot can be moved by hand, but with some resistance.

19. Turn tractor key to ON position.

20. Move twine arms to the home position (actuator fully retracted) using toggle switch on twine wrap controller.

23. Tighten cap screw (A) to specifications.

Specification

24. Tighten cap screw (B) to specifications.

Specification

25. Turn tractor key to ON position.

26. Using twine wrap controller, cycle twine arms to home position (actuator fully retracted) .

AG,OUMX005,1367 -19-19MAR00-6/6
