Install SMV Sign in Operating Position

Without Net Wrap Unit;

1. Remove two M6 x 20 mounting cap screws, nuts and SMV sign.
2. Reinstall sign with reflective side away from machine (as shown). Fasten sign to machine using existing hardware.

With Net Wrap Unit;

1. Remove protective covering from sign.

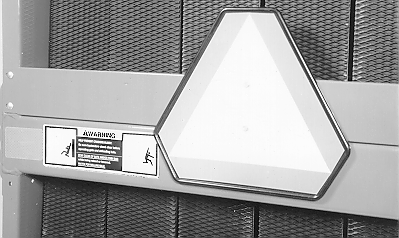

E39568

Without Net Wrap Unit Shown

AG,OUMX005,1389 -19-20MAR00-1/1
