Sharpening Net Wrap Cutoff Knife

NOTE: Sharpen knife when strings of net wrap material or patches of net wrap extend from the knife to gate roller, or when knife does not cut the net wrap material.

CAUTION: Knife is sharp. Wear gloves when handling knife.

1. Remove knife. (See REMOVING AND INSTALLING NET WRAP KNIFE in this section.)

2. Put knife in vise or lay knife on work bench and secure with clamps.

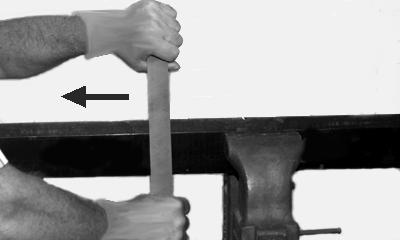

3. Hold file perpendicular to knife and move along length of knife as illustrated, to sharpen knife edge. This procedure (similar to using a draw knife), will produce a sharp knife.

4. Install knife.

A-Knife

AG,OUO1078,10 -19-11OCT99-1/1
