1. Start tractor engine.

2. Momentarily press WRAP switch to cycle net actuator. Knife at home (forward) position.

4. Lower gate to desired working position. Lock gate.

5. Shut off tractor engine. Remove key.

6. Open net wrap cover.

AG,OUO1078,13 -19-11OCT99-1/2

7. Remove cotter pin (A) and washer to disconnect spring (B).

8. Remove brace (C) and shim. Remove gate roll support (D).

9. Remove belt (E) from net wrap roll sheave (F), idler sheave (G), and gate roll sheave (H).

10. Install new belt around sheaves.

11. Install spring (B). Fasten with washer and cotter pin (A).

12. Install gate roll support (D), shim and brace (C).

13. Check clearance between roll and hole in side sheet.

14. Unlock gate.

15. Start tractor engine and raise gate.

16. Lower gate and tension arm.

17. Shut off tractor engine. Remove key.

18. Check knife edge to rear net guide adjustment. (See CHECKING NET WRAP V-BELT IDLER ARM ADJUSTMENT in this section.)

19. Check belt tracking. (See ADJUSTING BELT TRACKING in Service-Baler section.)

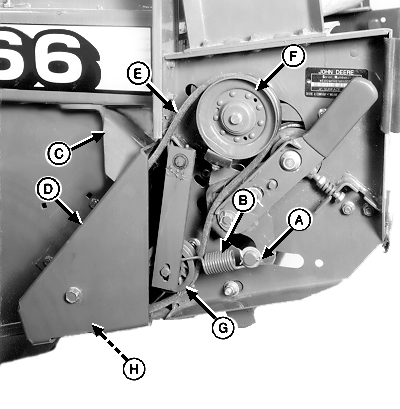

A-Cotter Pin
B-Spring
C-Brace
D-Gate Roll Support
E-Belt
F-Net Wrap Roll Sheave
G-Idler Sheave
H-Gate Roll Sheave
