Removing and Installing Net Wrap V-Belt Idler Arm

1. Disconnect net wrap controller power plug from tractor convenience outlet.

2. Open net wrap cover.

3. Remove cotter pin (A) and washer.

4. Remove lubrication fitting (B) and idler arm assembly.

NOTE: If idler sheave has been removed, installed cap screw (C) in middle of slot for initial setting.

5. Install idler arm in reverse order of removal.

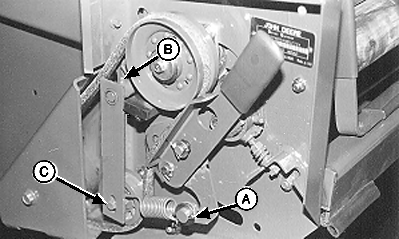

A-Cotter Pin
B-Grease Fitting
C-Cap Screw
