Installing BALE WATCH™ Monitor on 6000 Series Open-Station Tractor

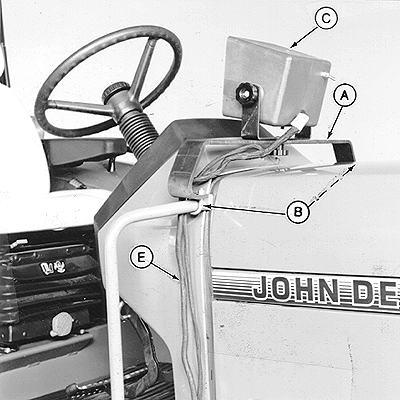

1. Install bracket (A) over tractor hood. Fasten with two U-bolts (B), four washers, and four nuts.

2. Install monitor (C) on bracket in convenient location. Fasten with knob and round-head bolt.

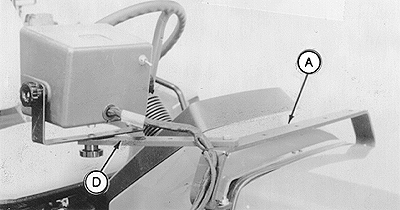

• If equipped with optional strap (Order strap from Service Parts.):

  a. Install monitor strap (D) to bracket (A). Fasten with cap screw, washer, and flange nut.
  b. Install monitor on monitor strap. Fasten with knob and round-head cap screw.


3. Route wiring harness (E) down hood. Fasten harness to U-bolt (B) with tie band. (Tie band not provided).

A-Bracket
B-U-Bolt
C-Monitor
D-Monitor Strap (Optional)
E-Wiring Harness

BALE WATCH is a trademark of Deere & Company

AG,OUO6017,1414 -19-05OCT99-1/2

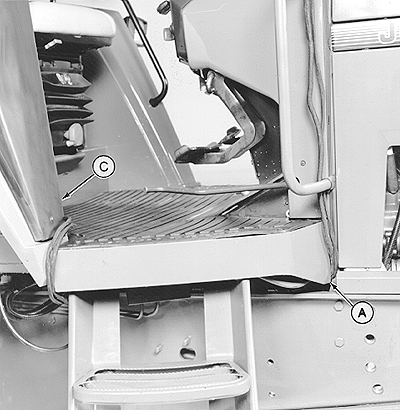

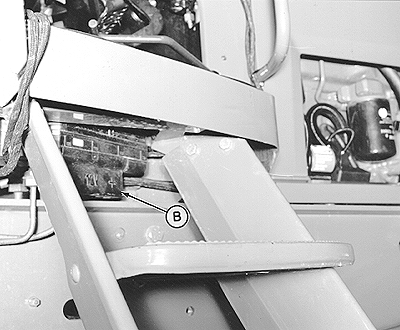

4. Route harness under corner of platform (A), behind booster battery terminals (B), on top of shifter cable bracket, and up around corner of platform and control console (C).

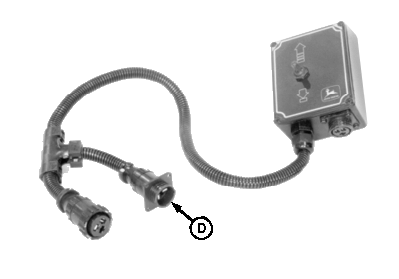

5. Plug BALE WATCH™ harness power plug into tractor convenience outlet or to connector (D), if equipped with electric twine or net wrap controller.

6. Route baler plug to rear of tractor.

A-Platform
B-Battery Terminals
C-Control Console
D-Connector

AG,OUO6017,1414 -19-05OCT99-2/2
