Installing BALE WATCH™ Monitor on 7000/7010 Series Open-Station Tractor
E40153
E40155

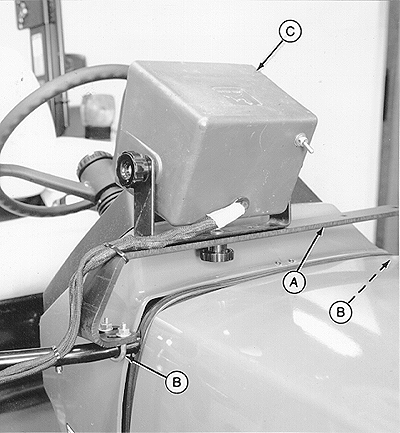

Monitor Bracket on Cowling

1. Install bracket (A) over tractor hood. Fasten with two U-bolts (B), four washers, and four nuts.

2. Install monitor (C) on bracket in convenient location. Fasten with knob and round-head bolt.

  • If equipped with optional strap (Order strap from Service Parts.):

    a. Install monitor strap (D) to bracket (A). Fasten with cap screw, washer, and flange nut.
    b. Install monitor on monitor strap. Fasten with knob and round-head cap screw.

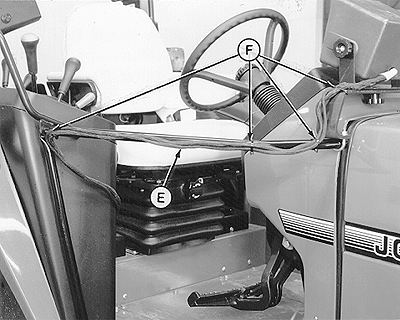

3. Route wiring harness (E) as follows:


A-Bracket
B-U-Bolts
C-Monitor
D-Monitor Strap (Optional)
E-Wiring Harness
F-Tie Bands
G-Connector

E40154

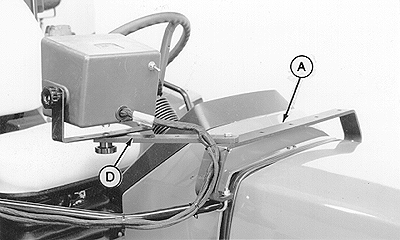

Optional Monitor Strap Illustrated

E40156

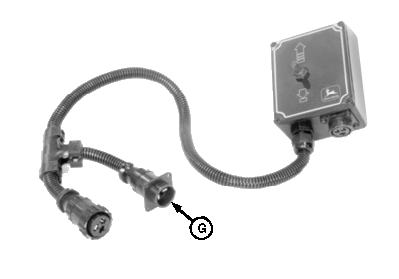

Electric Twine Wrap Controller

BALE WATCH is a trademark of Deere & Company

AG,OUO6017,1415 -19-05OCT99-1/4

  • Tractor WITHOUT Optional Right-Hand Step;

    a. Route wiring harness along bracket, railing, and around control console.
    b. Plug BALE WATCH™ harness power plug into tractor convenience outlet or to connector (G), if equipped with electric twine or net wrap controller.
    c. Route baler plug to rear of tractor.
    d. Fasten wiring harness to railing and bracket with tie bands (F) (tie bands not provided).

AG,OUO6017,1415 -19-05OCT99-2/4

  • Tractor WITH Optional Right-Hand Step;

    a. Route wiring harness down hood and under platform.
    b. Fasten harness to U-bolt with tie band.

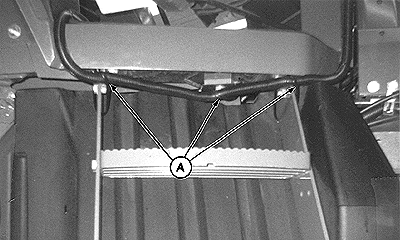

    c. Fasten harness under platform with tie bands (A) (tie bands not provided).
    d. Route harness around control console. Plug BALE WATCH™ harness power plug into tractor convenience outlet or, if equipped, to electric twine or net wrap controller harness.
    e. Route baler plug to rear of tractor.


A-Tie Bands

E40157

AG,OUO6017,1415 -19-05OCT99-3/4

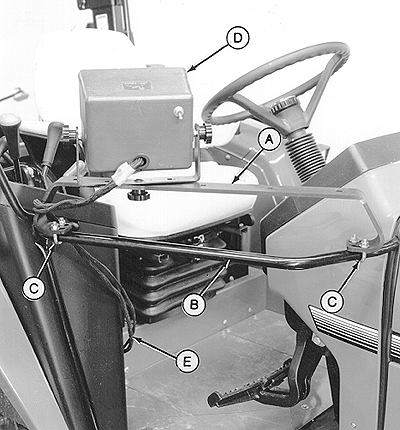

Monitor Bracket on Hand Rail

1. Install bracket (A) on railing (B). Fasten with two U-bolts (C), four washers, and four nuts.

2. Install monitor (D) on bracket. Fasten with knob and round-head cap screw.

3. Route wiring harness (E) around bracket and control console.

4. Plug BALE WATCH ™ harness power plug into tractor convenience outlet or to connector (F), if equipped with electric twine or net wrap controller.

5. Route baler plug to rear of tractor.


A-Bracket
B-Railing
C-U-Bolts
D-Monitor
E-Wiring Harness
F-Connector

E40158
E40159

Electric Twine Wrap Controller

BALE WATCH is a trademark of Deere & Company

AG,OUO6017,1415 -19-05OCT99-4/4
