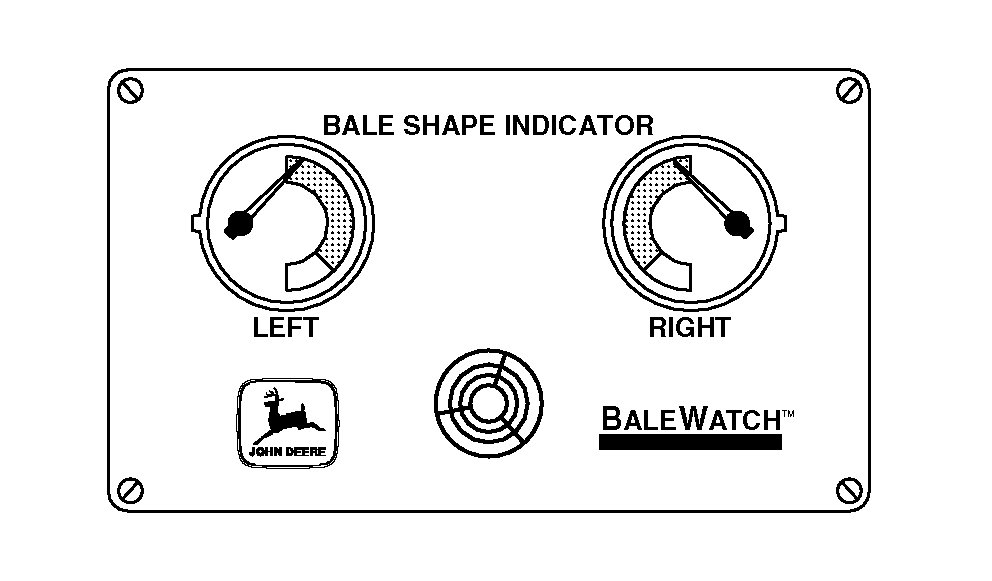

Installing BALE WATCH™ Monitor in SOUND-GARD® Cab

1. Select a protected location where:

• Monitor display is visible.
• Mounting brackets are on a flat, metal surface.
• 12-Volt power source is accessible.
• Bale size alarm is audible with tractor and baler in operation.

BALE WATCH is a trademark of Deere & Company
SOUND-GARD is a trademark of Deere & Company

AG,OUO6017,1417 -19-05OCT99-1/3

2. Assemble monitor bracket (B) to base.

3. Attach base to window ledge using three cap screws (A).

4. Place monitor pivot bracket (factory installed) on top of mounting bracket and attach using cap screw.

5. Route harness along right-hand side of cab, away from operation levers, to rear of side console.

A-Cap Screws
B-Monitor Bracket

AG,OUO6017,1417 -19-05OCT99-2/3

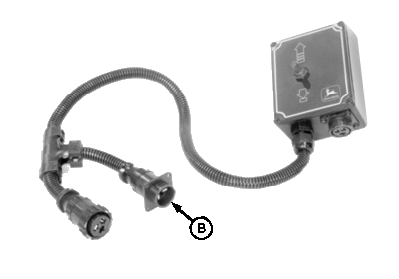

6. Connect BALE WATCH™ harness power plug to either tractor convenience outlet (A) or connector (B), if equipped with electric twine or net wrap controller.

7. Route baler plug through back wall of cab at a convenient location or drill a 44 mm (1-3/4 in.) diameter hole in rear wall, if required.

A-Tractor Convenience Outlet
B-Connector

AG,OUO6017,1417 -19-05OCT99-3/3
