Installing Electric Actuated Twine or Net Wrap Controller (If Equipped) in Cab

NOTE: Pictures illustrate 6000 and 7000 Series tractors with COMFORTGARD ™ cabs.

Mounting brackets can be ordered through Service Parts for SOUND-GARD ® and COMFORTGARD ™ cabs.

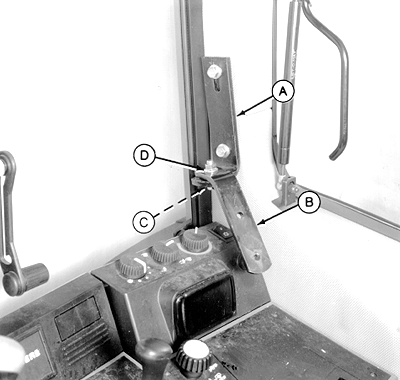

1. Install "L" bracket (A) to rear cab post mounting points. Fasten with two M10 x 20 flange-head cap screws.

2. Attach bracket (B) to "L" bracket (A). Fasten with M10 x 35 cap screw, 11 x 20 x 2 mm washer (C), and flange nut (D).

A-"L" Bracket
B-Bracket
C-Washer, 11 x 20 x 2 mm
D-Flange Nut

COMFORTGARD is a trademark of Deere & Company
SOUND-GARD is a trademark of Deere & Company

AG,OUO6017,1420 -19-05OCT99-1/2

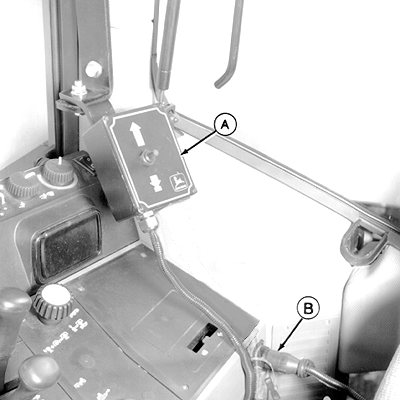

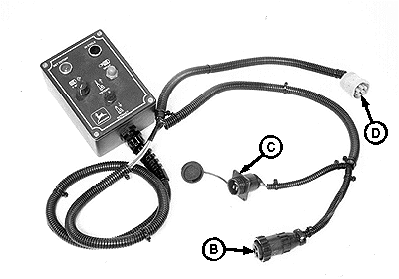

3. Install controller (A) on bracket. Fasten with two wing nuts.

4. Connect controller harness power plug (B) to tractor convenience outlet.

5. Connect BALE WATCH™ harness power plug into end (C).

6. Net wrap controller; Route remaining connector (D) to rear of tractor.

A-Controller
B-Power Plug
C-Plug End
D-Connector

AG,OUO6017,1420 -19-05OCT99-2/2
