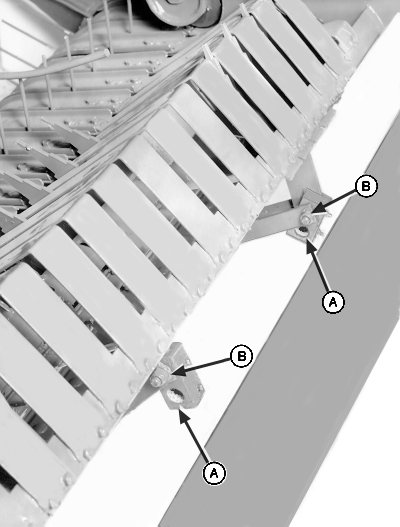

Setting Pickup Feeder Forks (Wide Pickup-456/456S)The wide pickup feeder forks can be set into two working positions. When making an adjustment, make sure all three feeder forks are set in the same position. IMPORTANT: To prevent damage to the pickup when baling in silage, make sure all three feeder forks are positioned in the lower hole. Position (A): This position is used for most crop conditions including small diameter and silage bales. Position (B): This position is used for difficult conditions such as short, dry, slick crops. This position maximizes the feeder fork stroke into bale chamber.
|
|
