Adjusting Lower Belt Drive Roll Chain

To ensure that all slack is removed from chains, close gate and engage PTO a few seconds. Shut off tractor.

Adjust tension on lower belt drive roll chain (B) by loosening idler mounting nut (A) and pressing idler against chain to specification.

Specification

Idler-to-Chain -Tension (Force) 22-44 N (5-10 lb force)

Tighten idler mounting nut to specifications. Readjust as necessary.

Specification

Idler Mounting Nut -Torque 163 N·m (120 lb-ft)

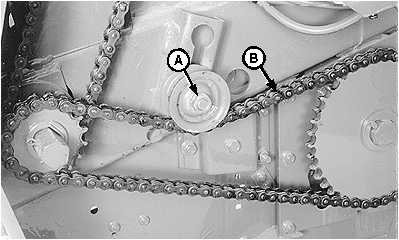

E40186


A-Mounting Nut
B-Drive Roll Chain

AG,OUO6017,1482 -19-08OCT99-1/1
