Adjusting Twine Cutter Tension-Electric

NOTE: 456/456S; Perform this adjustment before adjusting twine distance from right sidesheet.

1. If equipped with MEGATOOTH ™ pickup; Remove quick-lock pin (A) and rotate left-hand curtain (B) away from front frame.


A-Quick-Lock Pin
B-Left-Hand Curtain

E39273

MEGATOOTH is a trademark of Deere & Company

AG,OUO6017,1497 -19-08OCT99-1/6

causym CAUTION: Twine arms can move unexpectedly when twine arm power is on. Stay out of the path of twine arms at all times when twine arm power is on. During service or adjustment procedures for twine arms or twine cutter mechanism, turn off power to twine arms BEFORE placing your hands in the path of twine arm travel.

If there is crop material which is holding twine arms from moving freely during twine arm cycle, it is recommended that twine arms be manually positioned to release any "hold" they may have on the crop material. Turn off power to twine arms. This will help to make the unplugging operation easier and prevent twine arms from moving unexpectedly while your hands may be in the path of the twine arms. Stay out of the path of twine arms at all times when power to twine arms is ON.

2. Turn tractor key to ON position. Do not start tractor engine.

E47598

AG,OUO6017,1497 -19-08OCT99-2/6

3. Move twine arms behind knife (C) using toggle switch on twine wrap controller.

4. Turn tractor key to OFF position. Remove key. Disconnect twine wrap controller power plug from tractor convenience outlet.

causym CAUTION: Be careful when working around the knife. It is sharp.

5. Pull cutter strap (A) gently forward until knife (C) lightly contacts hex anvil. Remove slack, but DO NOT deform strap.

6. Mark along cutter strap (A) at support (B), as shown.


A-Quick-Lock pin
B-Support
C-Knife

TS268
E39276

AG,OUO6017,1497 -19-08OCT99-3/6

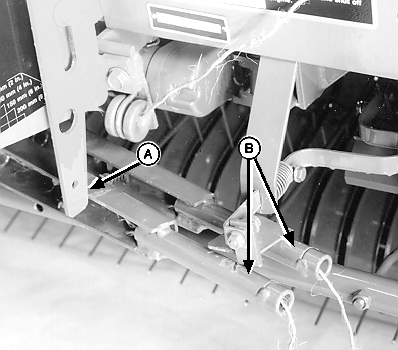

7. Make sure twine arm stop (A) is in the down position.

8. Connect twine wrap controller power plug to tractor convenience outlet. Turn tractor key to ON position.

9. Return twine arms (B) to "home" position using toggle switch on twine wrap controller.

10. Turn tractor key to OFF position. Remove key. Disconnect twine wrap controller power plug from tractor convenience outlet.

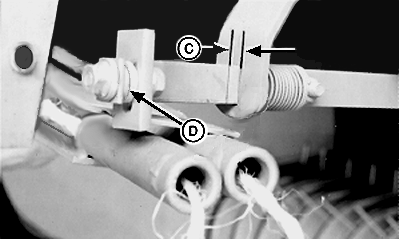

11. Distance (C) between mark on cutter strap and strap support should be within specifications.

Specification

Mark on Cutter Strap-to-Strap Support -Distance 5-7 mm (3/16-9/32 in.)

  • To decrease distance, move washers (D) from front of strap to rear of strap.
  • To Increase distance, move washers from rear of strap to front of strap.

If electric actuator has been removed or replaced, or if twine cutter adjustment cannot be made by moving washers on cutter strap, refer to TWINE ELECTRIC ACTUATOR INSTALLATION ADJUSTMENT in this section.

E39771
E39773


A-Twine Arm Stop
B-Twine Arms
C-Distance
D-Washers

AG,OUO6017,1497 -19-08OCT99-4/6

12. If washers have been moved, check overlap dimension (E) between bottom edge of tab (B) and bottom edge of strap (C). Dimension (E) should be within specifications.

Specification

Bottom edge of Tab-to-Bottom Edge of Strap -Overlap 2-4 mm (3/32-5/32 in.)

To check overlap dimension:

a. Connect twine wrap controller power plug to tractor convenience outlet. Turn tractor key to ON position.

b. Move twine arms, using toggle switch on twine wrap controller, until twine arm (D) lightly contacts tab (B) and strap (C).

c. Turn tractor key to OFF position. Remove key. Disconnect twine wrap controller power plug from tractor convenience outlet.

d. Loosen nut (A) and adjust tab (B) to obtain overlap (E) between bottom edge of tab (B) and bottom side of contact strap (C) to within specifications. Keep tab (B) vertical and tighten nut (A).

e. Connect twine wrap controller power plug to tractor convenience outlet. Turn tractor key to ON position.

f. Move twine arms completely forward, using toggle switch on twine wrap controller.

g. Turn tractor key to OFF position. Remove key. Disconnect twine wrap controller power plug from tractor convenience outlet.

h. Check overlap dimension (E). Front twine arm must pass under tab (B). If necessary, adjust tab (B). Light contact between tab (B) and front twine arm (D) is acceptable.

i. Make sure distance between mark on cutter strap and strap support is within specifications.

E40583


A-Nut
B-Tab
C-Strap
D-Twine Arm
E-Dimension

AG,OUO6017,1497 -19-08OCT99-5/6

Specification

Mark on Cutter Strap-to-Strap Support -Distance 5-7 mm (3/16-9/32 in.)

13. If equipped with a MEGATOOTH™ pickup; Rotate left-hand curtain toward front frame and secure with quick-lock pin.

AG,OUO6017,1497 -19-08OCT99-6/6
